Circuit Diagram

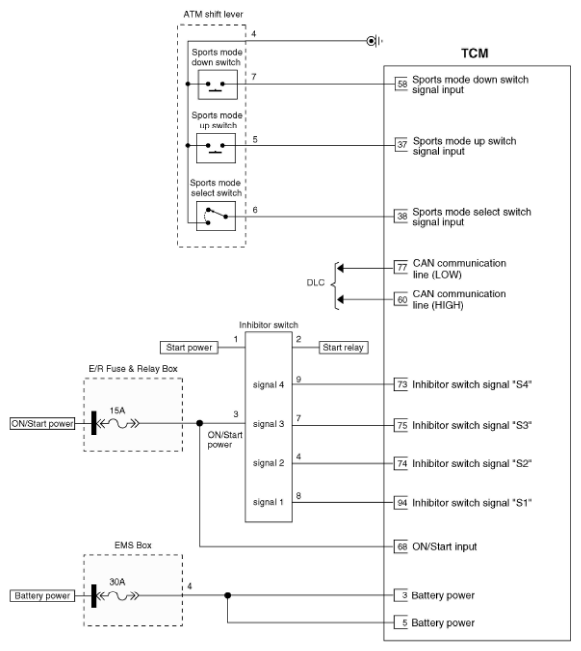

Fig 1: TCM Terminal Input/ Output Signal Circuit (1 Of 2)
G11845491Courtesy of KIA MOTORS AMERICA, INC.

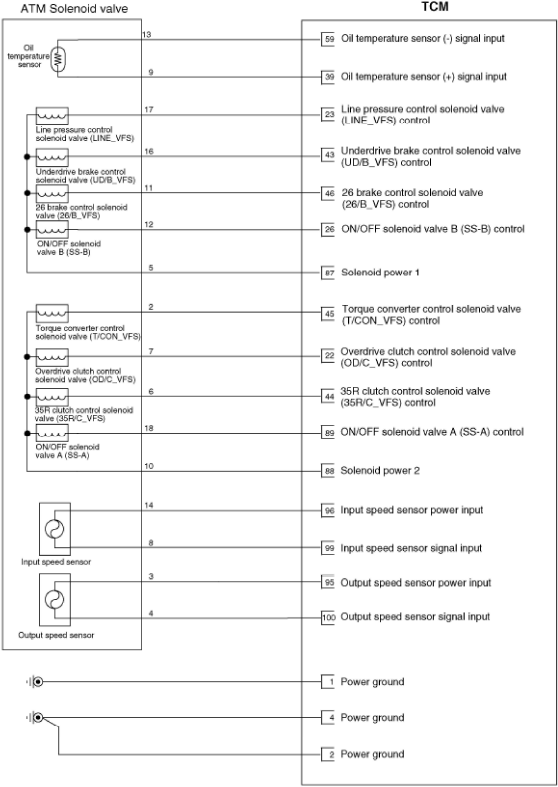

Fig 2: TCM Terminal Input/ Output Signal Circuit (2 Of 2)
G11845492Courtesy of KIA MOTORS AMERICA, INC.
