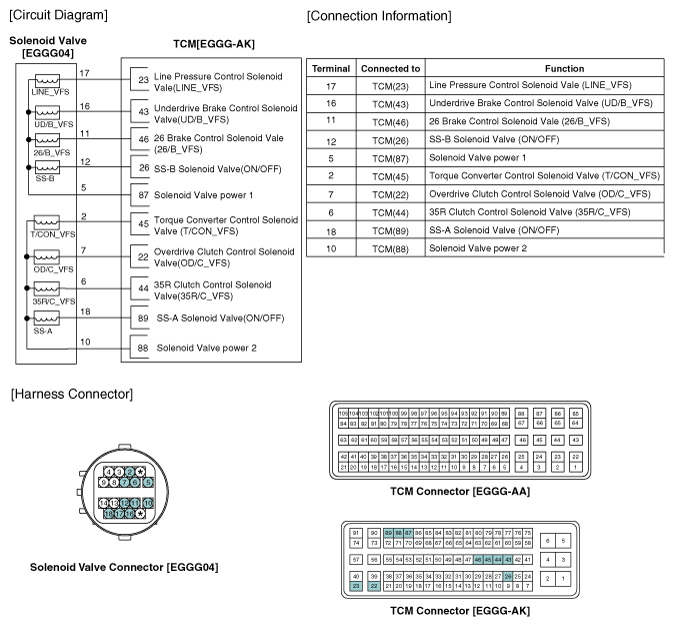

Home >> Kia >> 2017 >> Rio SX >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System >> Line Pressure Control Solenoid Valve >> Schematic Diagrams >> Circuit Diagram
