Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON" & Engine "ON".
  3. Select "Current Data" mode and monitor "SPORTS MODE SELECT S/W, SPORTS MODE UP S/W, SPORTS MODE DOWN S/W" parameters.
  4. Change shift lever to "Sports Mode".

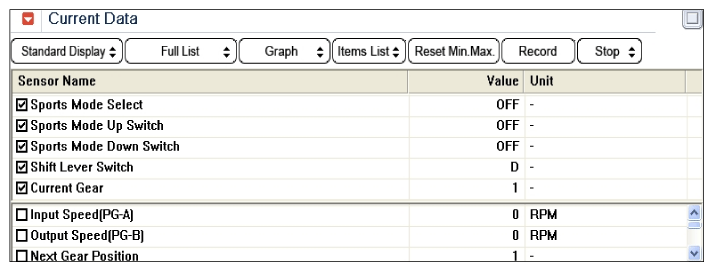

    Fig 1: Screen Display - D Range
    G11849171Courtesy of KIA MOTORS AMERICA, INC.

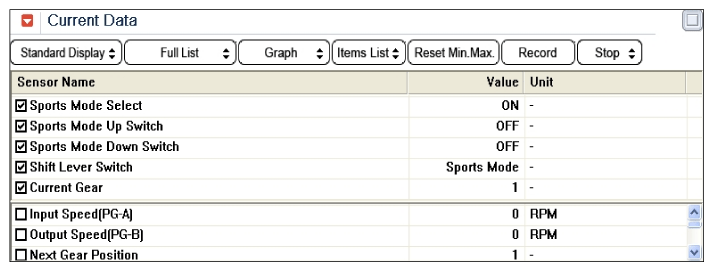

    Fig 2: Screen Display - Sports Mode ON
    G11849172Courtesy of KIA MOTORS AMERICA, INC.

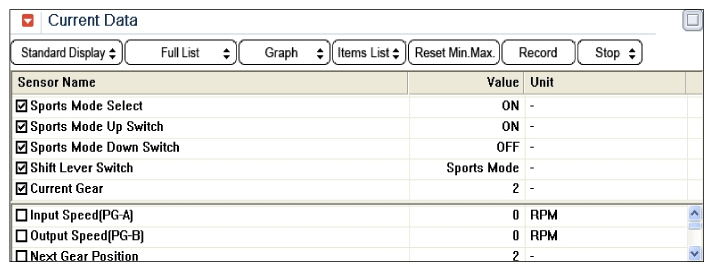

    Fig 3: Screen Display - Sports Mode Up Switch ON
    G11849173Courtesy of KIA MOTORS AMERICA, INC.

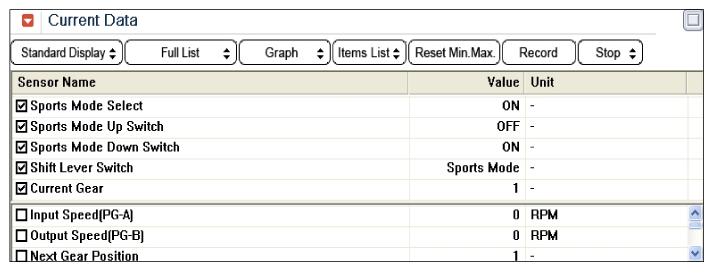

    Fig 4: Screen Display - Sports Mode Down Switch ON
    G11849174Courtesy of KIA MOTORS AMERICA, INC.
  5. Is Sports Mode Switch working within specification?

    YES

    • Fault is intermittent caused by poor contact between PCM and Sensor, and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
