Monitor GDS Data

Connect GDS to Data Link Connector (DLC).
Ignition "ON" & Engine "ON".
Select "Current Data" mode and monitor "Output speed sensor (PG-B)" parameter.
Driving above 20 Km/h.
Specification: Increasing Gradually

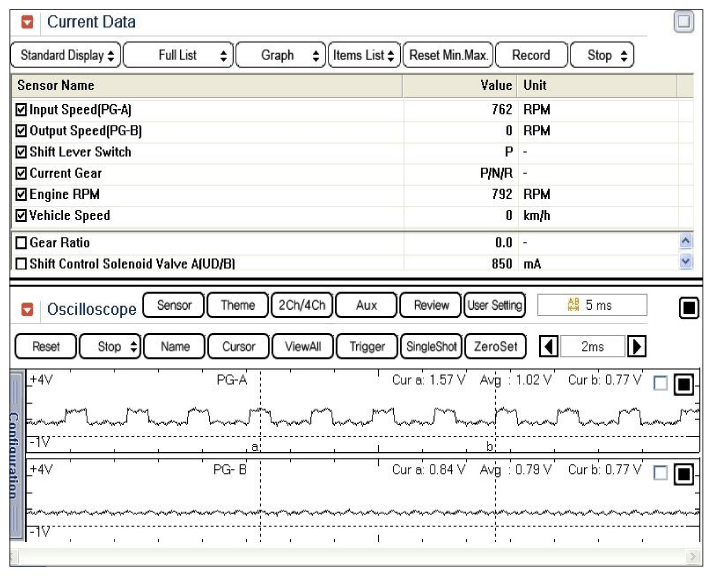

Fig 1: Screen Display - P, N Range
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Screen Display - R Range
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Screen Display - D Range 1st Gear
Courtesy of KIA MOTORS AMERICA, INC.

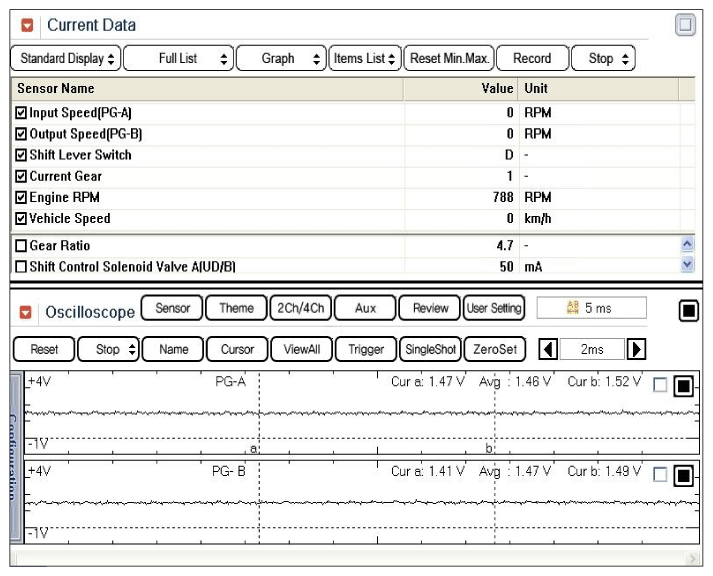

Fig 4: Screen Display - D Range 1st Gear, Vehicle Speed 0
Courtesy of KIA MOTORS AMERICA, INC.

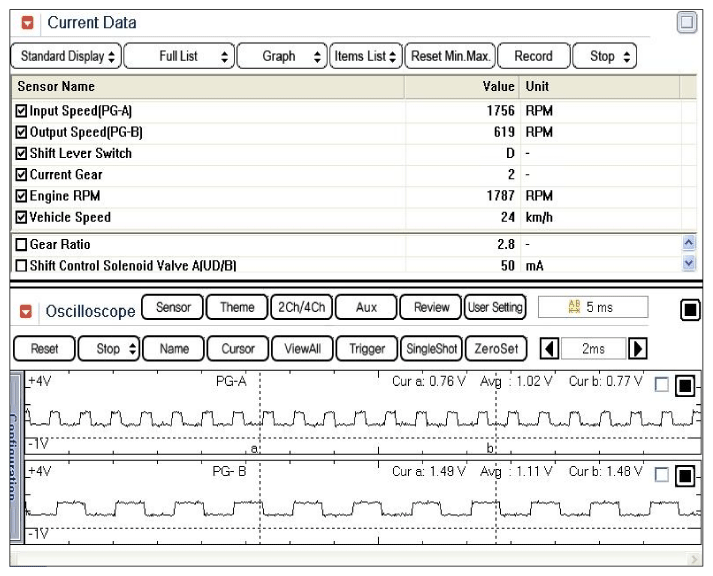

Fig 5: Screen Display - D Range 2nd Gear
Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Screen Display - D Range 3rd Gear
Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Screen Display - D Range 4th Gear
Courtesy of KIA MOTORS AMERICA, INC.

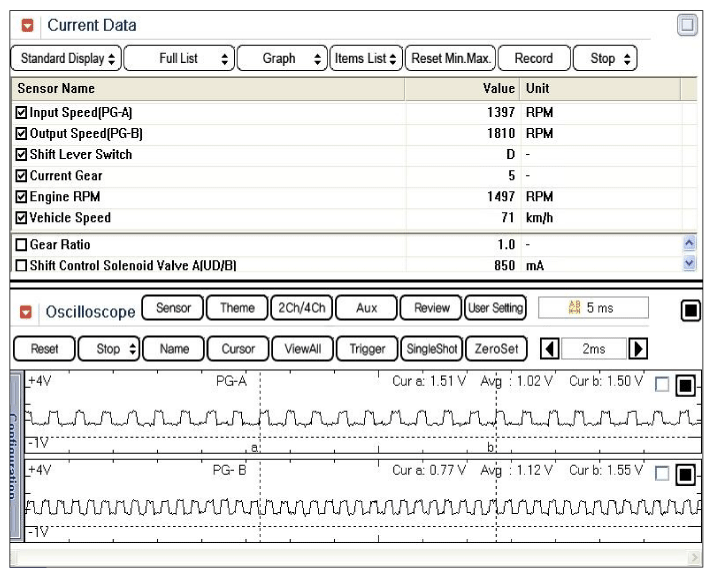

Fig 8: Screen Display - D Range 5th Gear
Courtesy of KIA MOTORS AMERICA, INC.

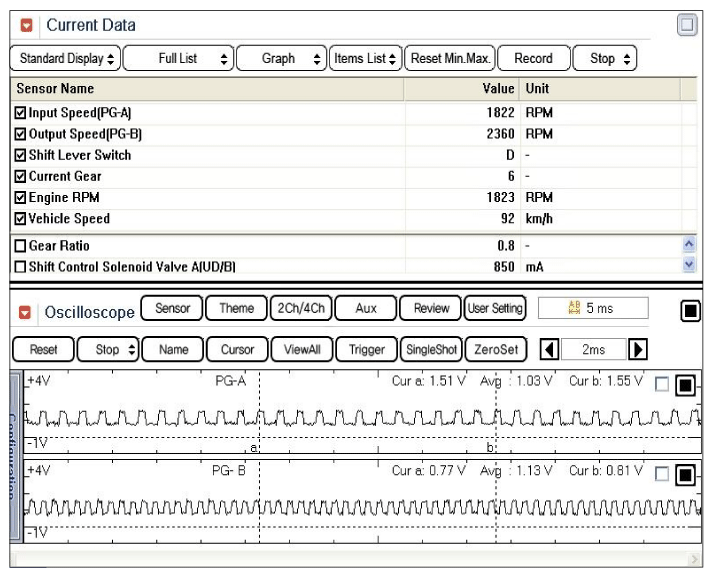

Fig 9: Screen Display - D Range 6th Gear
Courtesy of KIA MOTORS AMERICA, INC.
Is measured "Output Speed Sensor" value within specification?
YES
- Fault is intermittent caused by poor contact between TCM and Sensor, and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
