Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON" & engine "OFF".
  3. Select "Current Data" mode and monitor "Inhibitor switch" parameter.
  4. Change a shift lever from P-range to D-range.
    Fig 1: Screen Display - P Range
    G11848900Courtesy of KIA MOTORS AMERICA, INC.

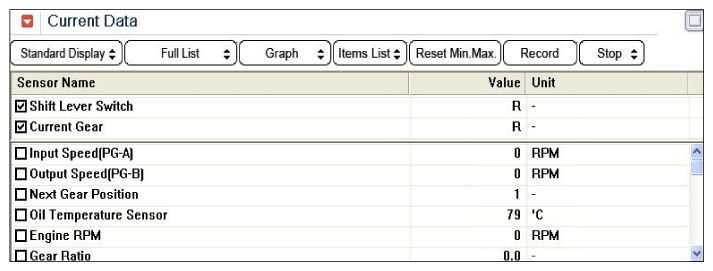

    Fig 2: Screen Display - R Range
    G11848901Courtesy of KIA MOTORS AMERICA, INC.

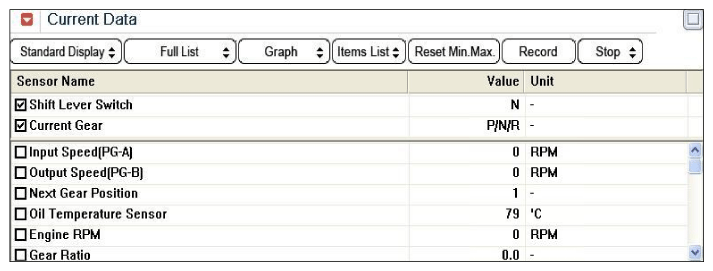

    Fig 3: Screen Display - N Range
    G11848902Courtesy of KIA MOTORS AMERICA, INC.

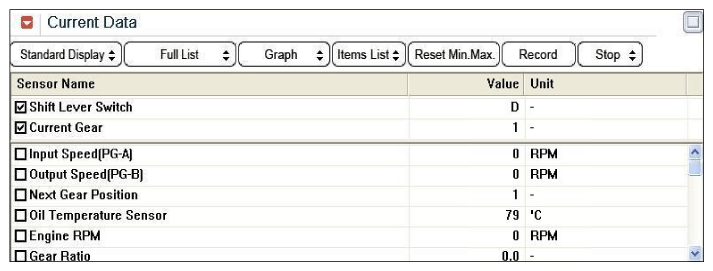

    Fig 4: Screen Display - D Range
    G11848903Courtesy of KIA MOTORS AMERICA, INC.
  5. Is the Inhibitor switch value changed in specification?

    YES

    • Fault is intermittent caused by poor contact of PCM and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
