Components And Components Location: Components

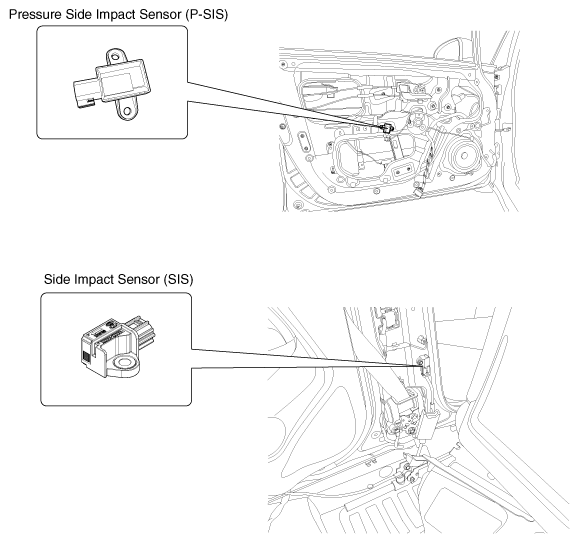

Fig 1: Locating Pressure (P-SIS) And Side Impact Sensor (SIS) Components

G11845924

Courtesy of KIA MOTORS AMERICA, INC.
