Circuit Diagram

(M/T)

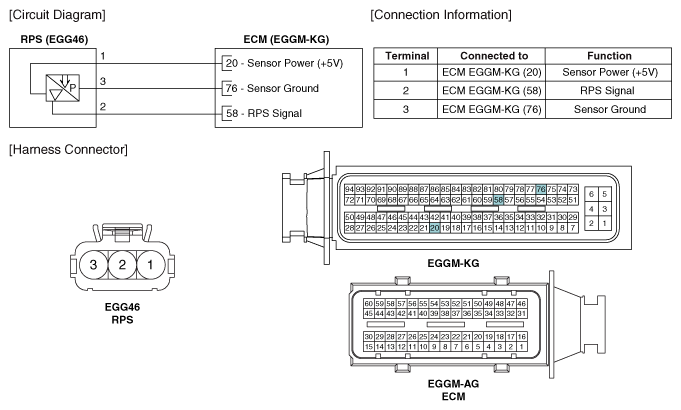

Fig 1: Rail Pressure Sensor Circuit (M/T)

G11845171

Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

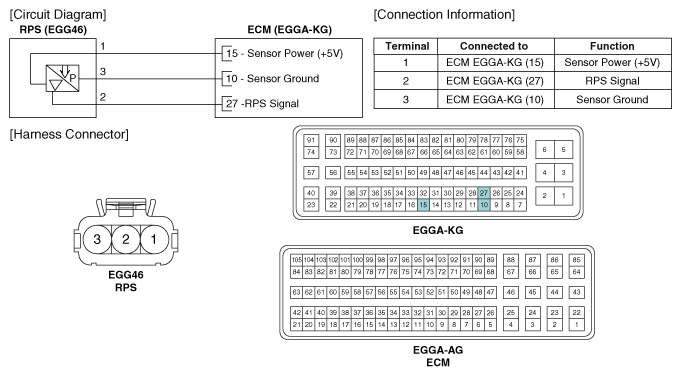

Fig 2: Rail Pressure Sensor Circuit (A/T)

G11845172

Courtesy of KIA MOTORS AMERICA, INC.
