Circuit Diagram

(M/T)

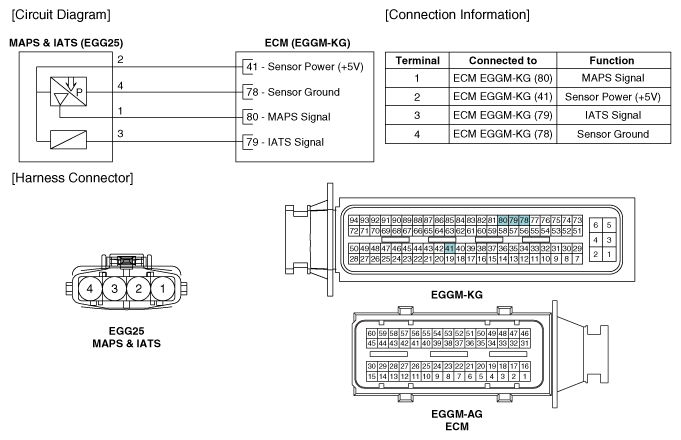

Fig 1: MAPS And IATS Circuit (M/T)

G11845129

Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

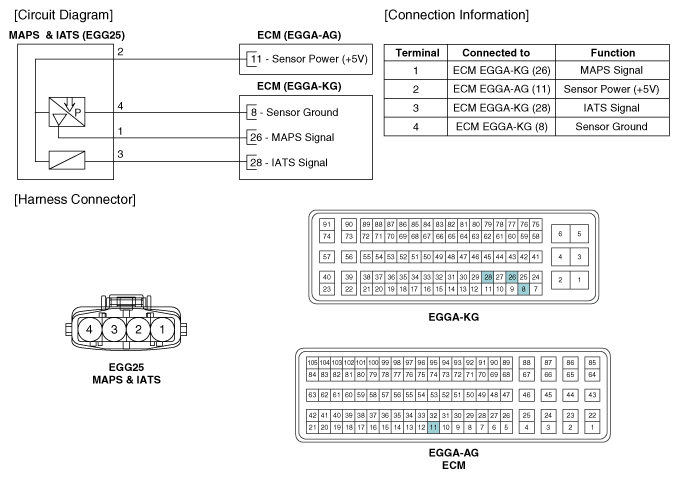

Fig 2: MAPS And IATS Circuit (A/T)

G11845130

Courtesy of KIA MOTORS AMERICA, INC.
