Circuit Diagram

(M/T)

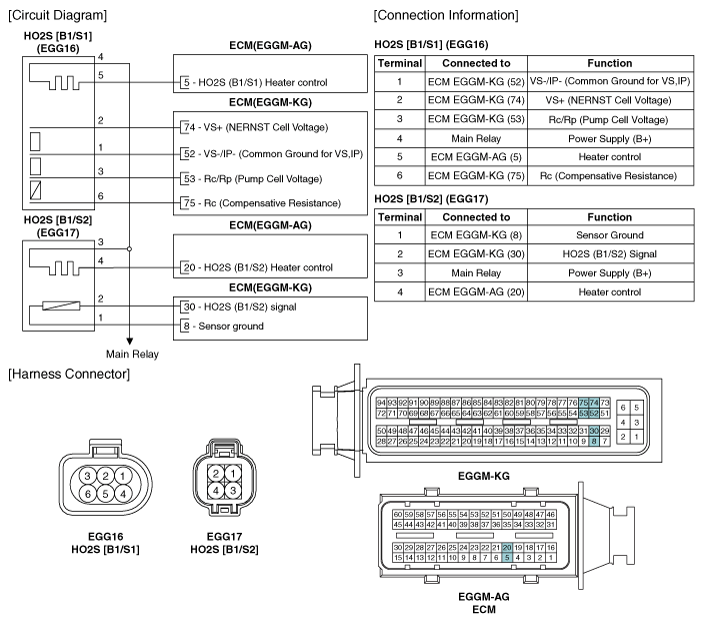

Fig 1: HO2S Circuit (M/T)
G11845161Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

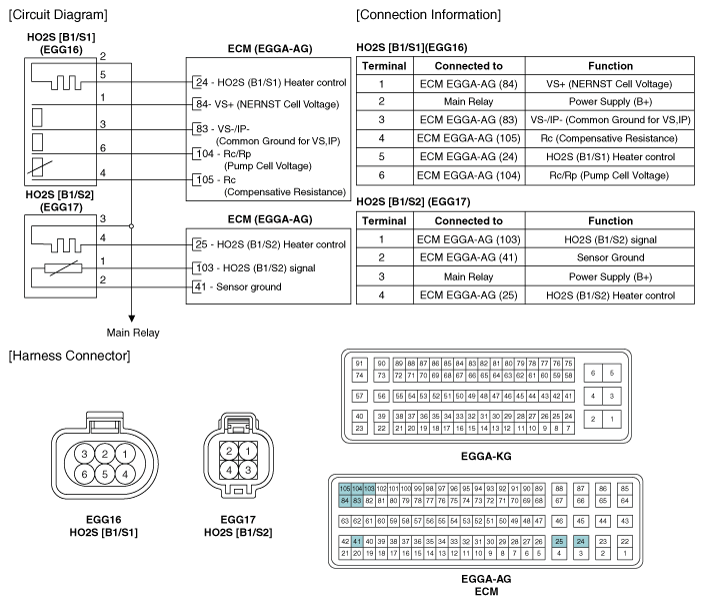

Fig 2: HO2S Circuit (A/T)
G11845162Courtesy of KIA MOTORS AMERICA, INC.
