Circuit Diagram

(M/T)

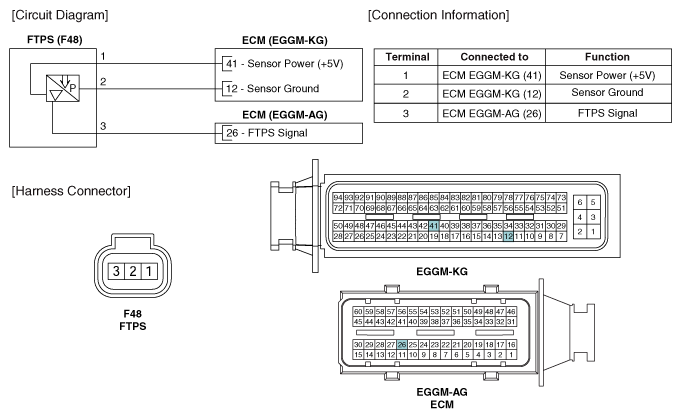

Fig 1: Fuel Tank Pressure Sensor Circuit (M/T)

G11845180

Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

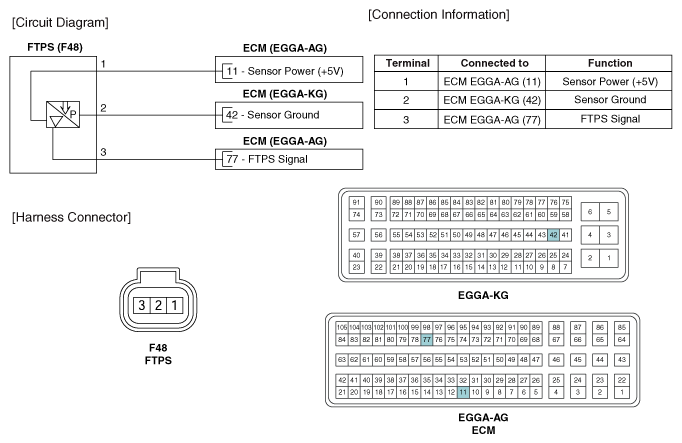

Fig 2: Fuel Tank Pressure Sensor Circuit (A/T)

G11845181

Courtesy of KIA MOTORS AMERICA, INC.
