Circuit Diagram

(M/T)

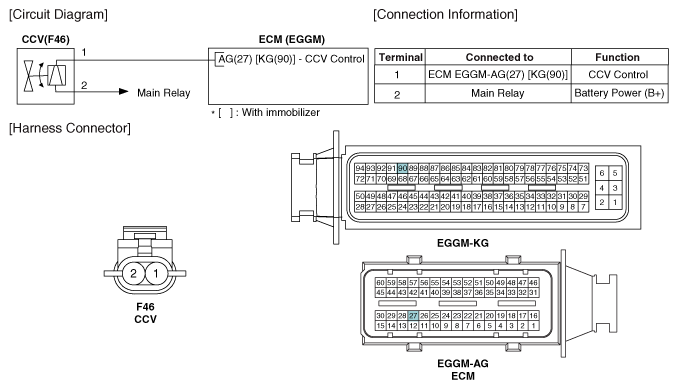

Fig 1: Canister Close Valve Circuit (M/T)

G11845223

Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

Fig 2: Canister Close Valve Circuit (A/T)

G11845224

Courtesy of KIA MOTORS AMERICA, INC.
