Circuit Diagram

(M/T)

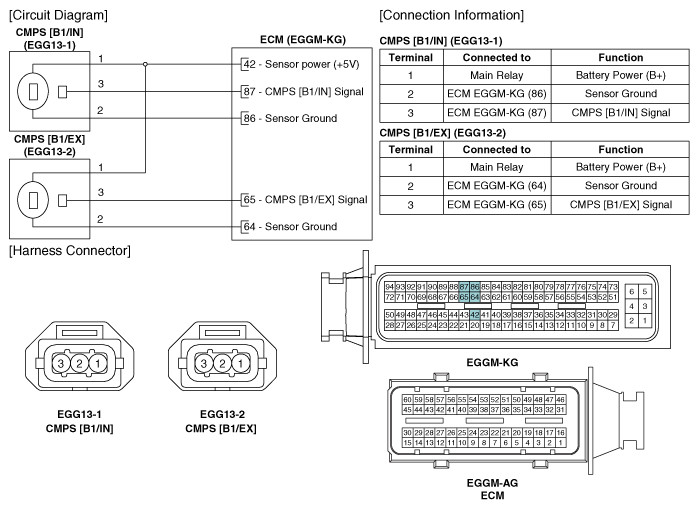

Fig 1: Camshaft Position Sensor Circuit (M/T)

G11845149

Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

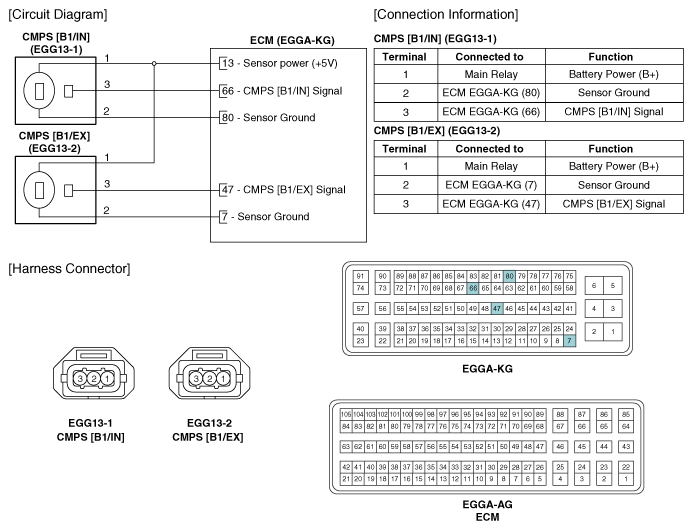

Fig 2: Camshaft Position Sensor Circuit (A/T)

G11845150

Courtesy of KIA MOTORS AMERICA, INC.
