Circuit Diagram

(M/T)

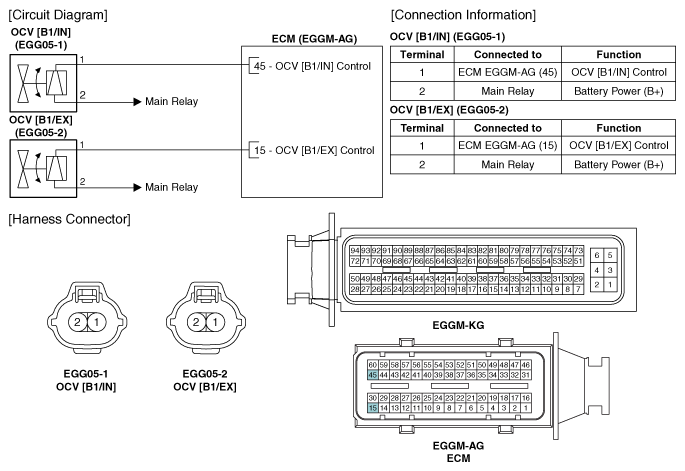

Fig 1: OCV Circuit (M/T)
G11845209Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

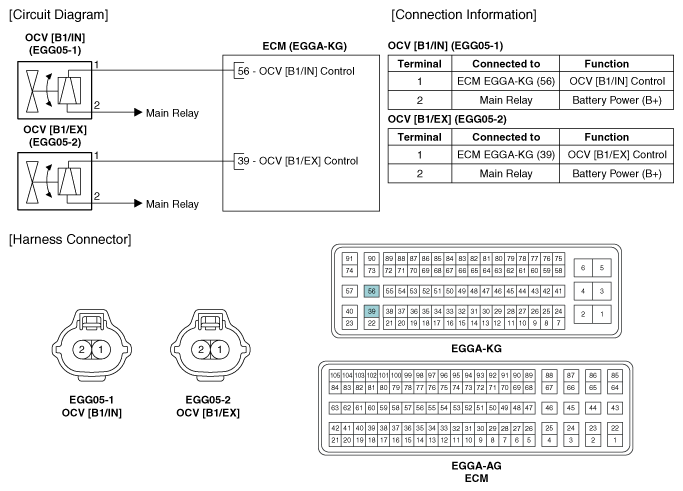

Fig 2: OCV Circuit (A/T)
G11845210Courtesy of KIA MOTORS AMERICA, INC.
