Engine Mechanical
>>
Lubrication System
>>
Engine Oil
>>
Flow Diagram
>>
Engine Oil Flow Diagram
Engine Oil Flow Diagram

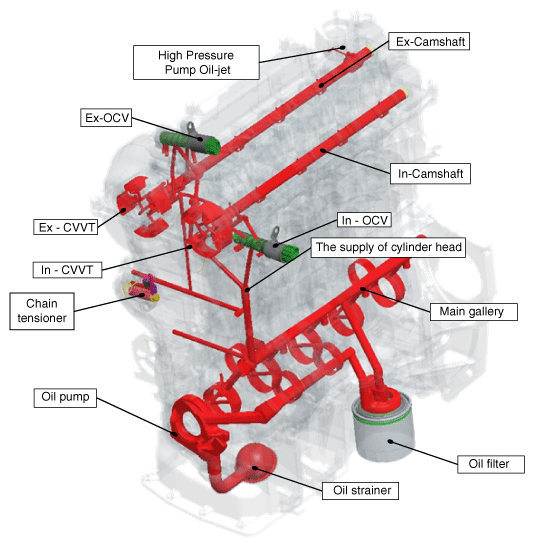

Fig 1: Lubrication System Components
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Engine Oil Flow Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
