Operation Principle
Operation Principle

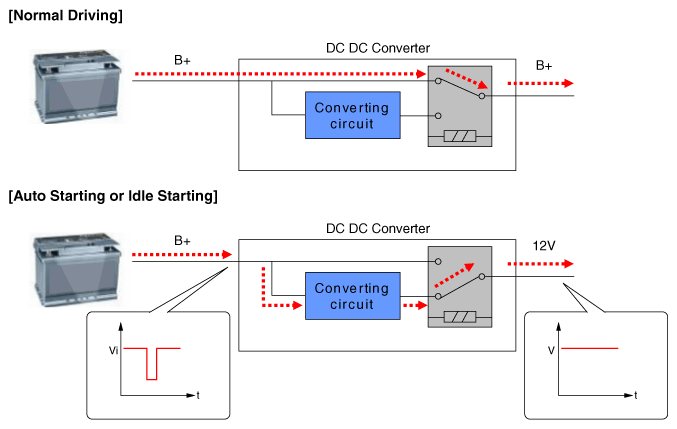

Fig 1: DC/DC Converter Operation Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Information
In the ISG mode, if the power of an audio system turns OFF by drawdown while "Auto Starting" or "Idle Starting" function operates, replace the DC/DC converter.
