Components And Components Location: Components

[LH]

Fig 1: Locating TJ Joint Components (LH)
G11845617Courtesy of KIA MOTORS AMERICA, INC.

[RH]

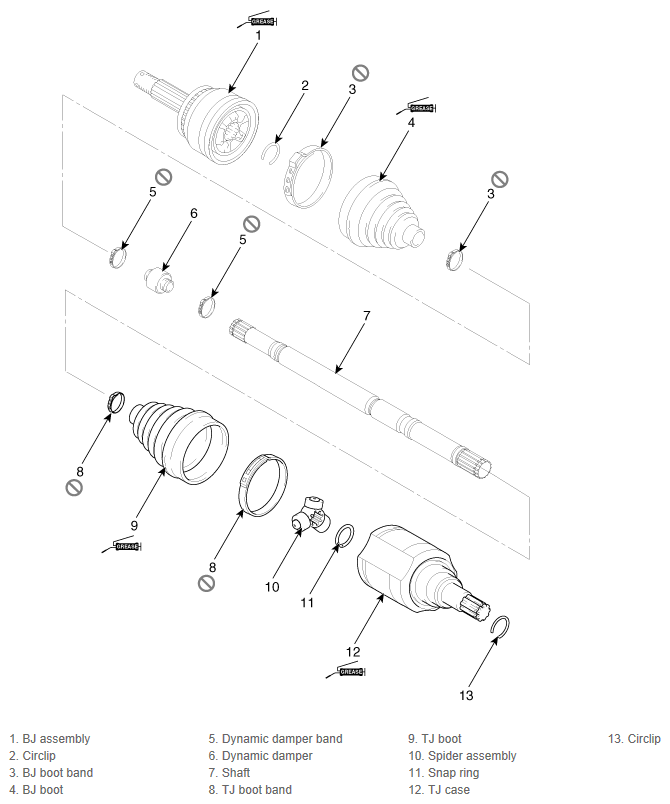

Fig 2: Locating TJ Joint Components (RH)
G11845618Courtesy of KIA MOTORS AMERICA, INC.
