Home >> Kia >> 2017 >> Rio SX >> Repair and Diagnosis >> Brakes >> Parking Brake System >> Parking Brake Assembly >> Components And Components Location >> Components

Components And Components Location: Components

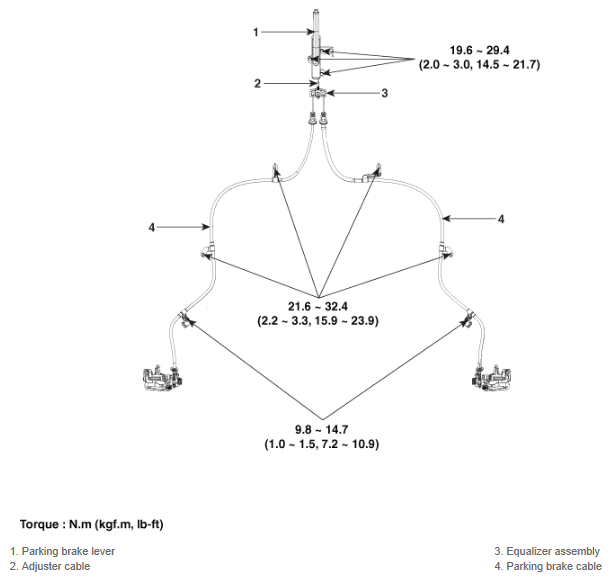

Fig 1: Locating Parking Brake Assembly Components With Torque Specification

G11846043

Courtesy of KIA MOTORS AMERICA, INC.
