Variant Coding

  1. Connect GDS to Data Link Connector (DLC).
  2. IG "ON".
  3. Using GDS, Perform Variant coding program. (Fig 1)
  4. IG "OFF" and wait for about 10 seconds, and then IG "ON".
  5. IG "OFF" and wait for about 10 seconds again, and then, IG "ON".
  6. Go to "COMPONENT INSPECTION " procedure.

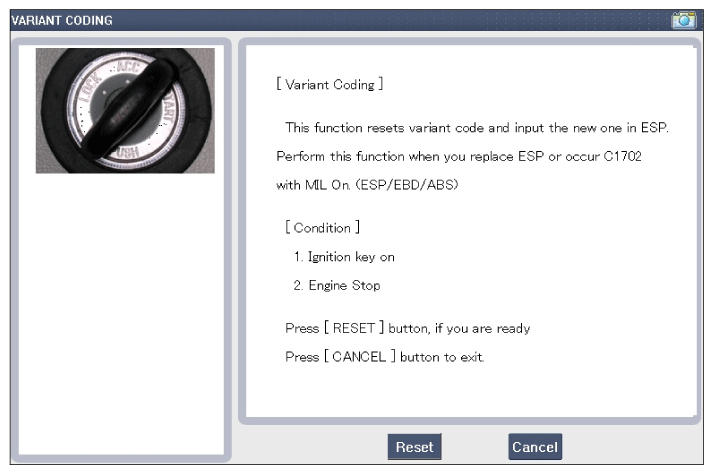

Fig 1: Screen Display - GDS Diagnostic (Variant Coding)
G11851774Courtesy of KIA MOTORS AMERICA, INC.
