Components And Components Location: Components

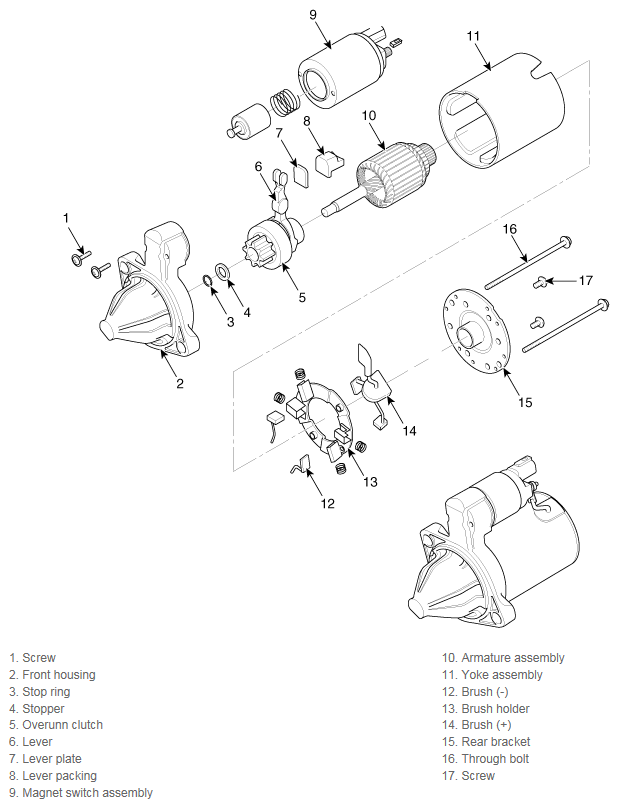

Fig 1: Starter Components Exploded View

G11844976

Courtesy of KIA MOTORS AMERICA, INC.
