Repair Procedures: Removal

Move the shift lever to "N" range.
Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")

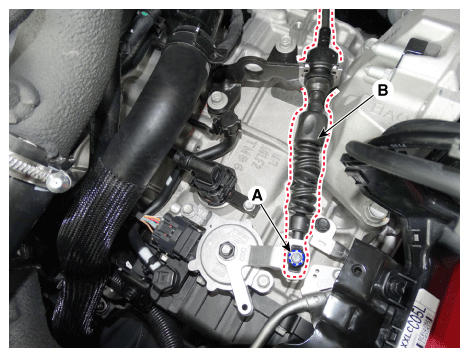

Remove the shift cable (B) from the bracket after loosening a nut (A).

Fig 1: Removing Shift Cable From Bracket
Courtesy of KIA MOTORS AMERICA, INC.

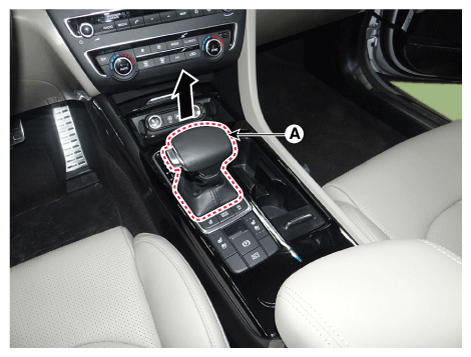

Remove the knob & boots (A) by pulling it in the direction of arrow after removing the boots from the console upper cover.

Fig 2: Removing Boots From Console Upper Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the floor console assembly.
(Refer to Body "FLOOR CONSOLE ")

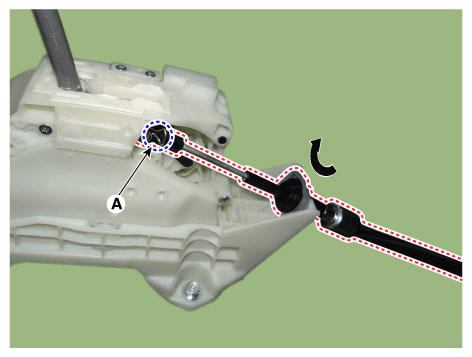

Remove the shift cable after separating the snap pin (A).

Fig 3: Removing Shift Cable
Courtesy of KIA MOTORS AMERICA, INC.

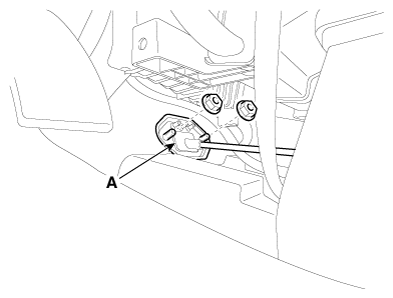

Remove the shift cable retainer (A) after loosening the nuts. Then, remove the shift cable by pulling it toward the vehicle interior.

Fig 4: Removing Shift Cable Retainer
