Inhibitor Switch: Troubleshooting

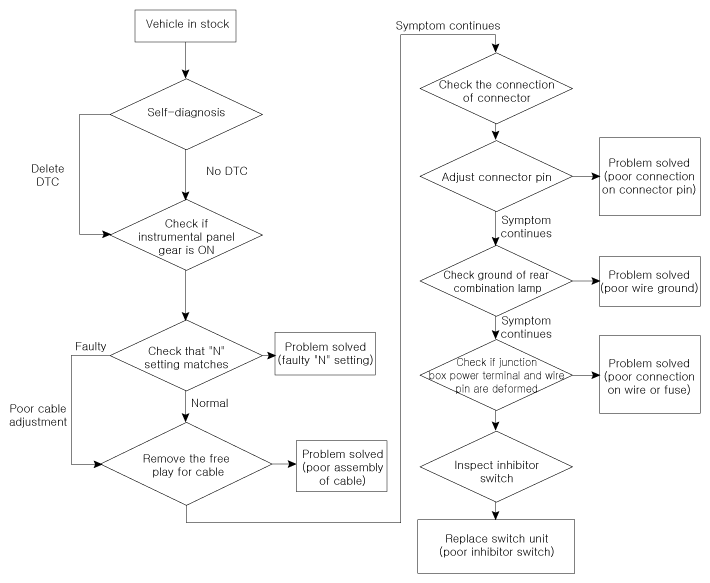

Fig 1: Inhibitor Switch Troubleshooting Flowchart
G12146048Courtesy of KIA MOTORS AMERICA, INC.
