Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the engine cover.
  3. Disconnect the ignition coil connector (A).

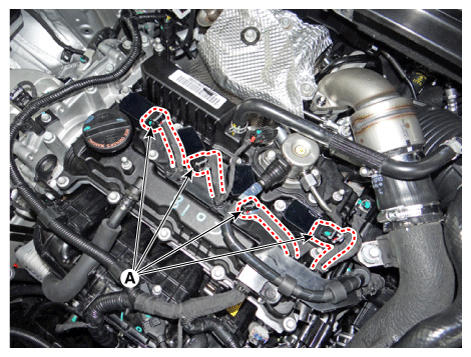

    Fig 1: Disconnecting Ignition Coil Connector
    G12145562Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Disconnect the ignition coil connector as the procedures below.

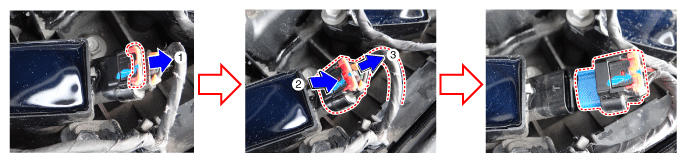

    Fig 2: Disconnecting Ignition Coil Connector
    G12145563Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the ignition coil (A) after loosening the mounting bolt.

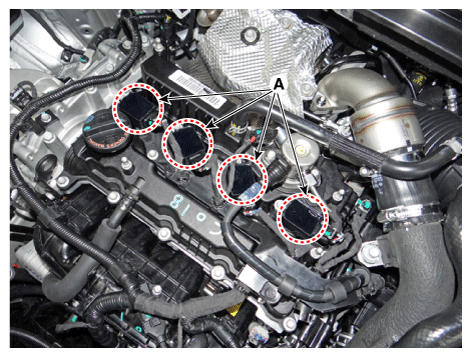

Fig 3: Removing Ignition Coil Mounting Bolt
G12145564Courtesy of KIA MOTORS AMERICA, INC.
