Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "Fuel Pump ")

  2. Disconnect the fuel sender connector (A).

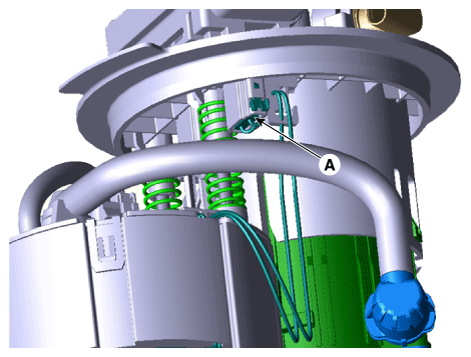

    Fig 1: Disconnecting Fuel Sender Connector
    G12145863Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the fuel sender (A) after releasing the fix hook.

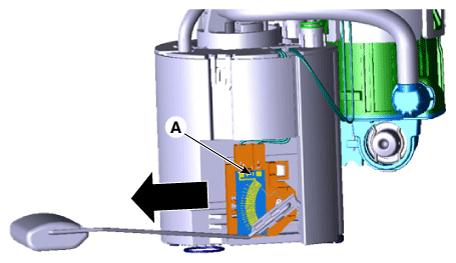

    Fig 2: Removing Fuel Sender
    G12145864Courtesy of KIA MOTORS AMERICA, INC.

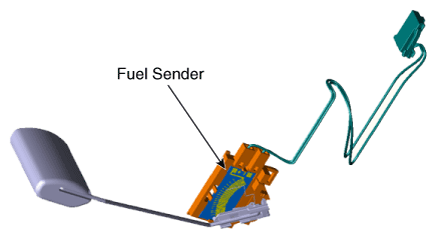

    Fig 3: Locating Fuel Sender
    G12145865Courtesy of KIA MOTORS AMERICA, INC.
