Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

  3. Remove the fuel pump service cover (A).

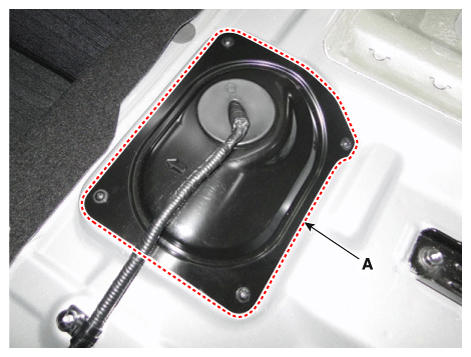

    Fig 1: Removing Fuel Pump Service Cover
    G12145880Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the fuel pressure sensor connector (A).
  5. Remove the fuel pressure sensor fixing pin (B).
  6. Remove the fuel pressure sensor (C) from the fuel pump.

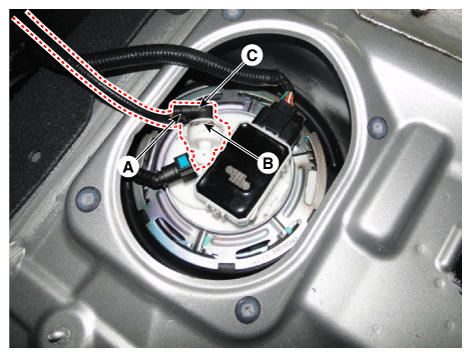

    Fig 2: Disconnecting Fuel Pressure Sensor Connector
    G12145881Courtesy of KIA MOTORS AMERICA, INC.
