Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "Fuel Pump ")

  2. Remove the fuel pressure regulator fixing clip (A).
  3. Remove the fuel pressure regulator (B) from the fuel filter.

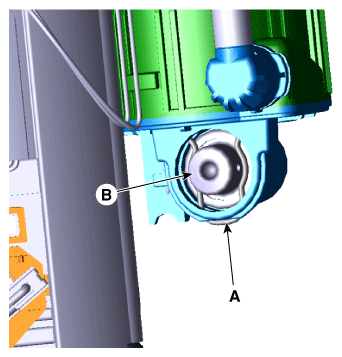

    Fig 1: Removing Fuel Pressure Regulator Fixing Clip
    G12145866Courtesy of KIA MOTORS AMERICA, INC.

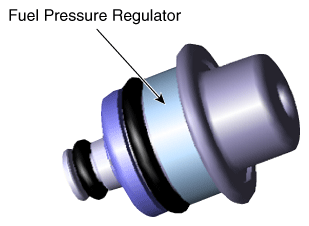

    Fig 2: Locating Fuel Pressure Regulator
    G12145867Courtesy of KIA MOTORS AMERICA, INC.
