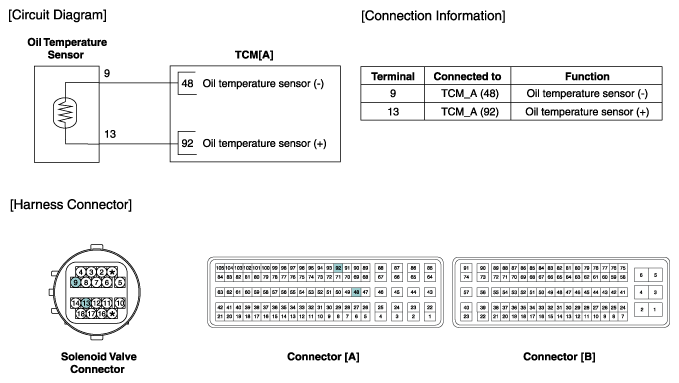

Home >> Kia >> 2017 >> Optima Plug-In Hybrid EX >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System (PHEV) >> Transaxle Oil Temperature Sensor >> Schematic Diagrams >> Circuit Diagram
