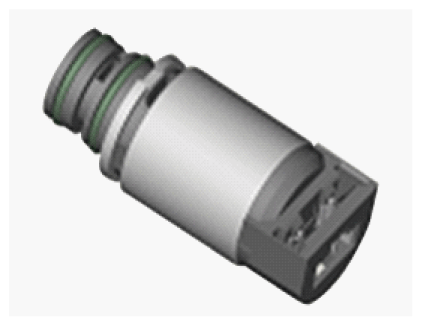

Description And Operation: Description
- SS-B solenoid valve is ON/OFF type.
- When TCM supplies power to solenoid valve, the solenoid valve operates and controls the speed range.
 Courtesy of KIA MOTORS AMERICA, INC.
|
SS-B SOLENOID VALVE OPERATION
| SS-B |
|
| N, P |
|
| 1 |
|
| 2 |
|
| 3 |
• |
| 4 |
|
| 5 |
• |
| 6 |
|
| R |
• |
•: Connected status
Δ: Connected with vehicle speed above 8km/h (5mph)
