Description And Operation: Description

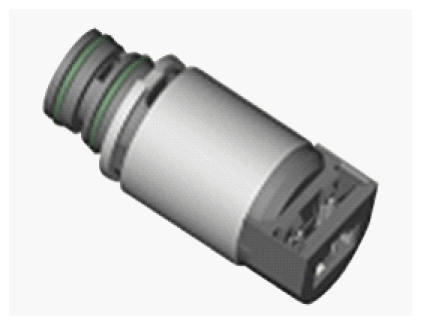

- SS-A solenoid valve is ON/OFF type.
- When TCM supplies variable current to solenoid valve, the solenoid valve operates and controls the speed range.
 Courtesy of KIA MOTORS AMERICA, INC.
|
SS-A SOLENOID VALVE OPERATION
| |
SS-A |
| N, P |
• |
| 1 |
Δ |
| 2 |
|
| 3 |
|
| 4 |
|
| 5 |
|
| 6 |
|
| R |
• |
•: Connected status
Δ: Connected with vehicle speed above 8km/h (5mph)
