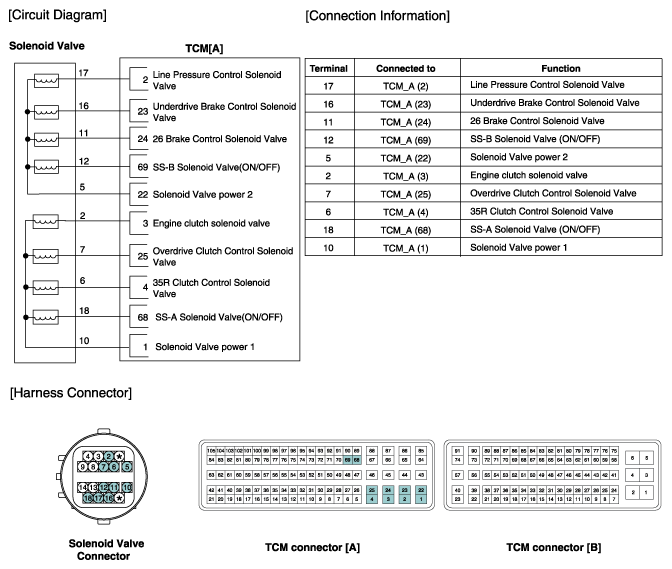

Home >> Kia >> 2017 >> Optima Plug-In Hybrid EX >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System (PHEV) >> Engine Clutch Control Solenoid Valve (E/C_VFS) >> Schematic Diagrams >> Circuit Diagram
