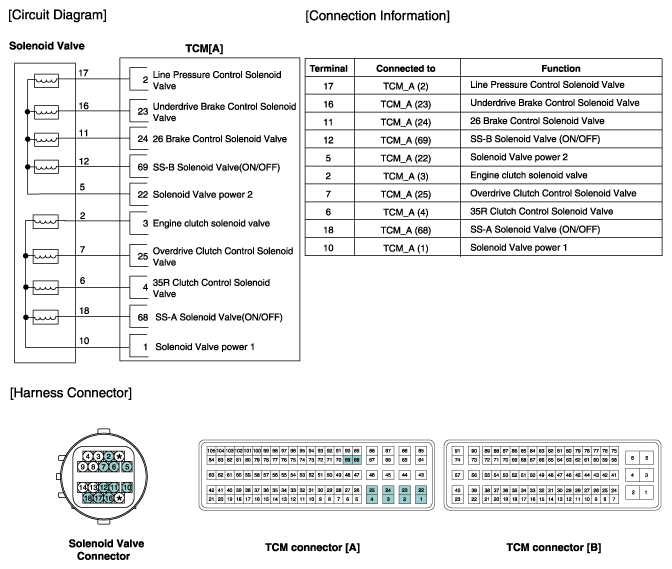

Home >> Kia >> 2017 >> Optima Plug-In Hybrid EX >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System (PHEV) >> 26 Brake Control Solenoid Valve (26/B_VFS) >> Schematic Diagrams >> Circuit Diagram
