Automatic Transaxle Control System (PHEV)
>>
26 Brake Control Solenoid Valve (26/B_VFS)
>>
Description And Operation
>>
Description
Description And Operation: Description

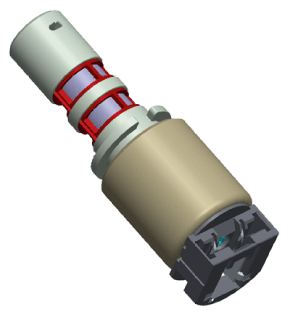

26 Brake control solenoid valve is a Variable Force Solenoid (VFS) type.
When TCM supplies variable current to solenoid valve, hydraulic pressure of 26 brake is controlled by solenoid valve.
Courtesy of KIA MOTORS AMERICA, INC.
26 BRAKE CONTROL SOLENOID VALVE OPERATION
26/B_VF
N/L
N, P
1
2
•
3
4
5
6
•
R
•: Connected status
Courtesy of KIA MOTORS AMERICA, INC.
