Repair Procedures: Removal

  1. Remove valve core and deflate the tire.

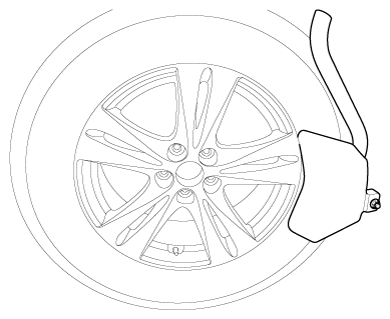

  2. Remove the side of the tire bead area from the wheel using tire changing machine.
    G12349814
    CAUTION:
    • The tire bead should be broken approx. 90° from the valve side of the wheel. The bead breaker should not be set too deep.
    • Avoid tire/tool contact with the valve on dismount.
    • Dismount should end near the valve.

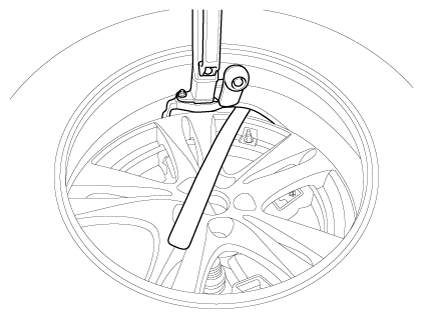

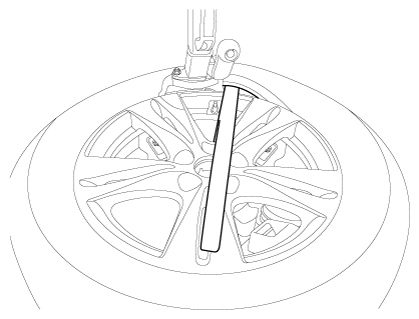

  3. Rotate the wheel clockwise.
G12349815
G12349816
