Repair Procedures: Removal

  1. Disconnect the battery negative cable from the battery and then wait for at least 30 seconds.
  2. Turn the steering wheel so that the front wheels are facing straight ahead.
  3. Remove the airbag module.

    (Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

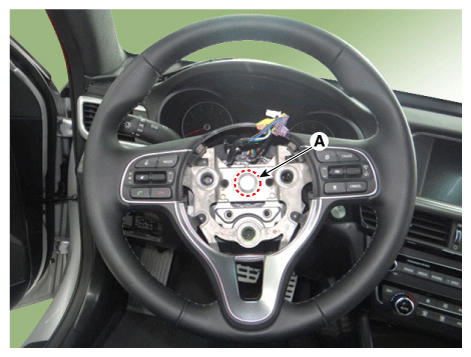

  4. Remove the lock bolt (A) and remove the steering wheel.

    Tightening torque:

    44.1 - 49.0 N.m (4.5 - 5.0 kgf.m, 32.5 - 36.2 lb.ft)

    G12349993Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: Do not hammer on the steering wheel to remove it; it may damage the steering column.
  5. Install in the reverse order of removal.
