Repair Procedures: Disassembly

Disconnect the battery negative cable.
Remove the steering wheel assembly.
(Refer to Steering System -"Steering Wheel")Repair procedures

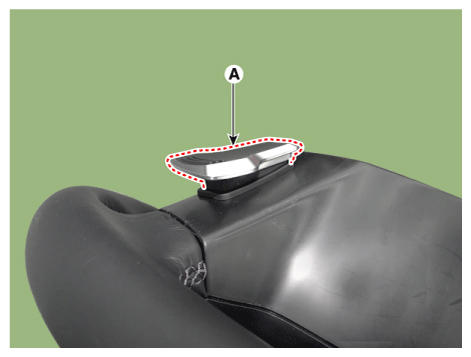

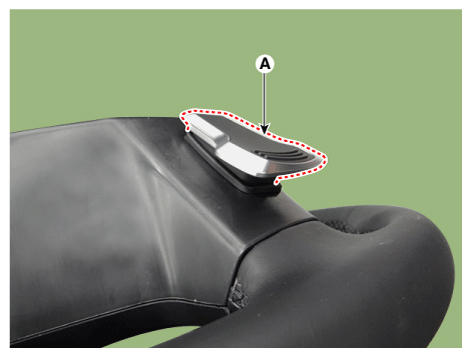

Loosen the screw and then remove the paddle shift switch (A).
[LHS]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

[RHS]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

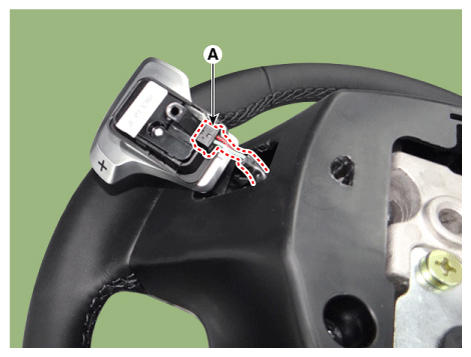

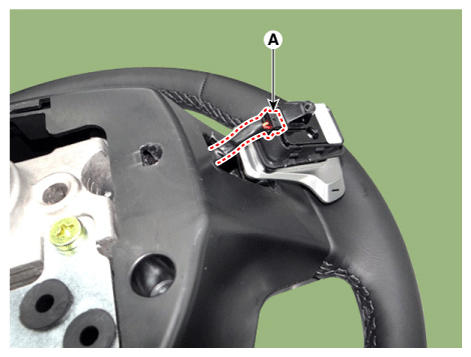

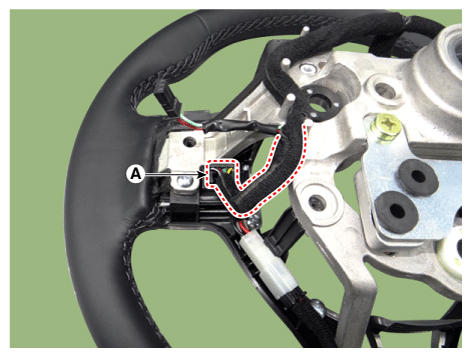

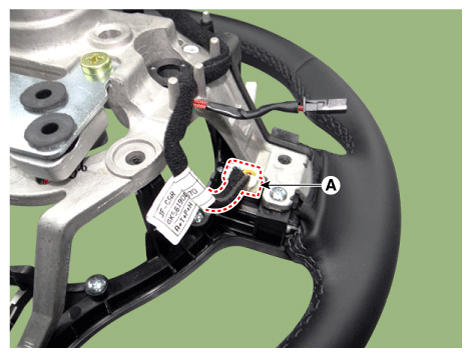

Remove the paddle switch connector (A).
[LHS]

Courtesy of KIA MOTORS AMERICA, INC.

[RHS]

Courtesy of KIA MOTORS AMERICA, INC.

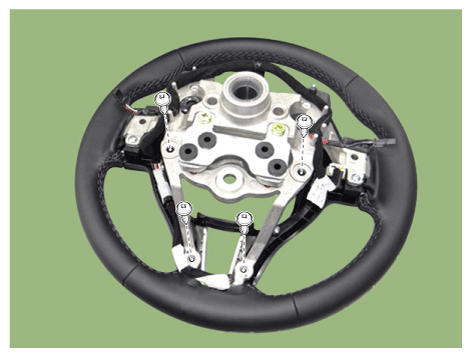

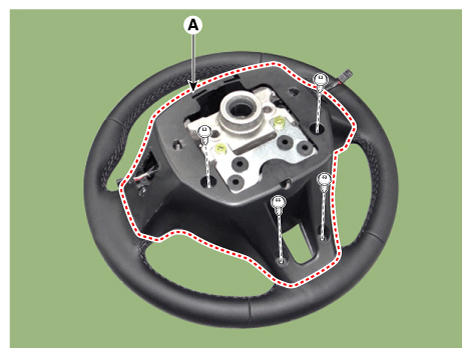

Remove the steering back cover (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connector (A) from the steering wheel remote control.
[LHS]

Courtesy of KIA MOTORS AMERICA, INC.

[RHS]

Courtesy of KIA MOTORS AMERICA, INC.

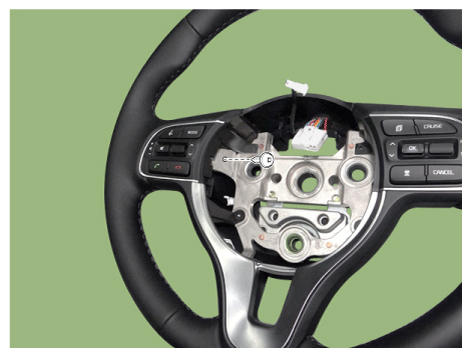

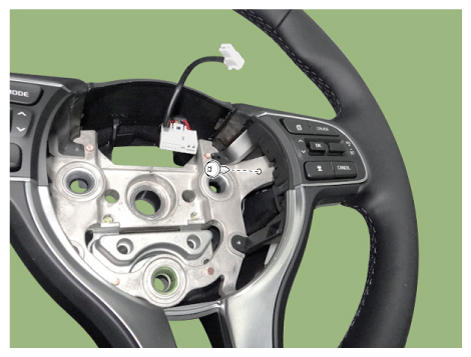

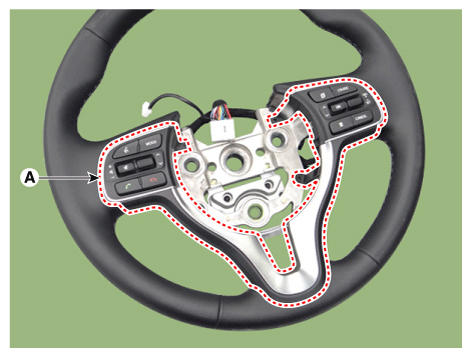

Loosen the screw and then remove the steering wheel remote control (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

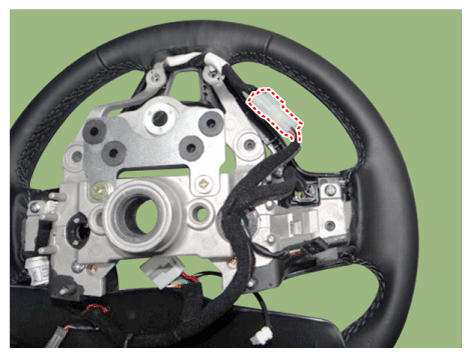

Disconnect the heated connector and then remove the heated wire.

Courtesy of KIA MOTORS AMERICA, INC.

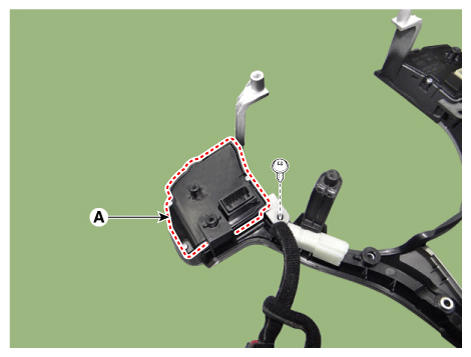

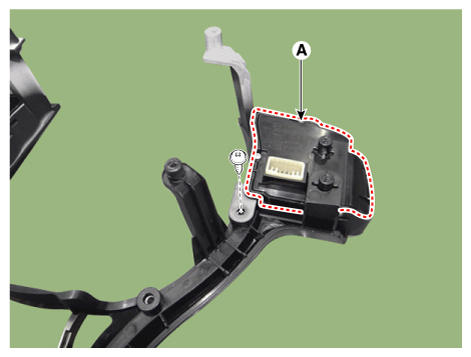

Loosen the screw and then remove the steering wheel remote control (A).
[LHS]

Courtesy of KIA MOTORS AMERICA, INC.

[RHS]

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
