Steering Control Systems
>>
Steering Wheel (PHEV)
>>
Heated Steering Wheel
>>
Schematic Diagrams
>>

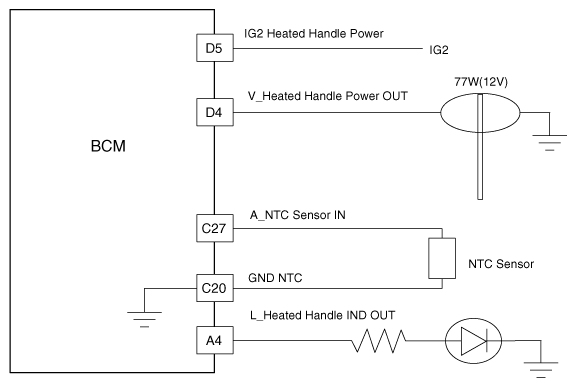

System Circuit Diagram
System Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.

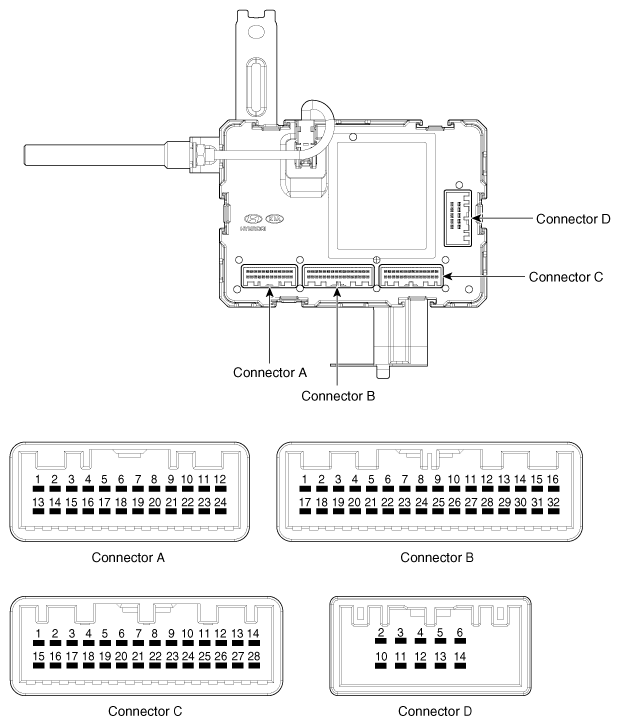

Pin
Function
A4
operation lamp
C20
NTC (-)
C27
NTC (+)
D4
Heated handle
D5
Heated handle power
Courtesy of KIA MOTORS AMERICA, INC.
