Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

Fix the brake pedal arm and insert the brake switch fully until the contact part is invisible.

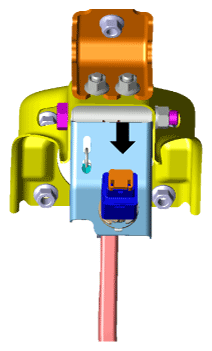

Fig 1: Inserting Stop Lamp Switch
Courtesy of KIA MOTORS AMERICA, INC.
After inserting, turn the brake switch 45° clockwise, and then assemble locking plate by pushing it.

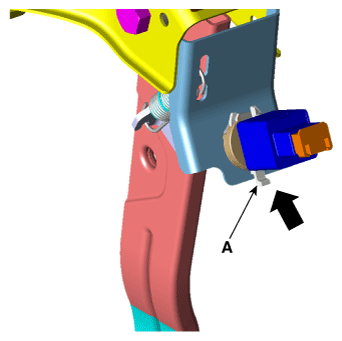

Fig 2: Turning Stop Switch
Courtesy of KIA MOTORS AMERICA, INC.
Check the gap (A) between brake switch and bracket.
Stop lamp clearance: 1.0 - 2.0 mm (0.04 - 0.08 in.)

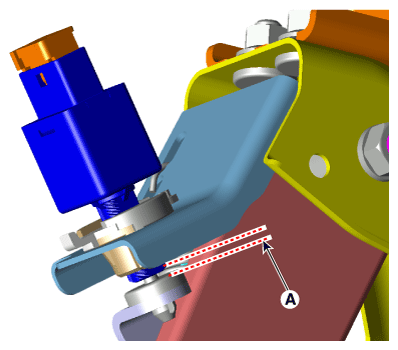

Fig 3: Checking Gap Between Stop Lamp Switch And Bracket
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: If the gap between stop lamp switch and bracket is not 1.0 - 2.0 mm (0.04 - 0.08 in.), perform the above process again.
Install the brake switch connector (A).

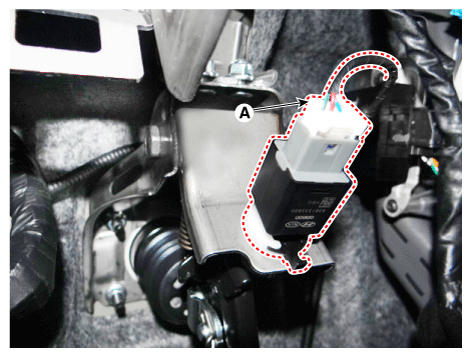

Fig 4: Locating Brake Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Install the knee airbag.
(Refer to Restraint - "KNEE AIRBAG (KAB) MODULE ")
Install the crash pad lower panel.
(Refer to Body (Interior and Exterior) - "CRASH PAD ")
