Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

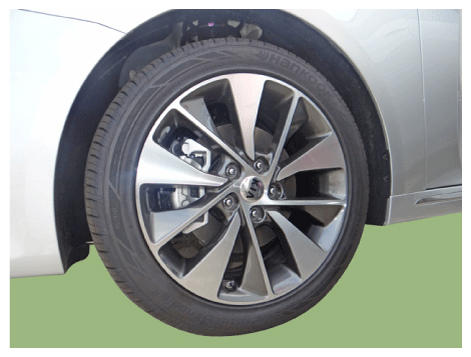

Remove the wheel and tire.
Tightening torque:

88.2 - 107.8 N.m (9.0 - 11.0 kgf.m, 65.0 - 79.5 lb.ft)

Fig 1: Wheel And Tire
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to damage the hub bolts when removing the wheel & tire.

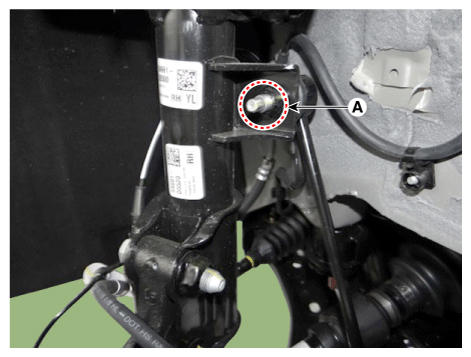

Remove the stabilizer link nut (A).
Tightening torque:

98.0 - 117.6 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.7 lb.ft)

Fig 2: Locating Stabilizer Link Nut
Courtesy of KIA MOTORS AMERICA, INC.

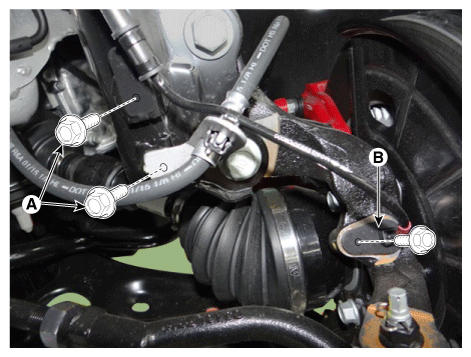

Remove the wheel speed sensor mounting bolts (A) and brake hose bracket bolt (B).
Tightening torque:
1. 8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)
2. 6.8 - 10.7 N.m (0.7 - 1.1 kgf.m, 5.0 - 7.9 lb.ft)
Fig 3: Locating Wheel Speed Sensor Mounting Bolts And Brake Hose Bracket Bolt
Courtesy of KIA MOTORS AMERICA, INC.

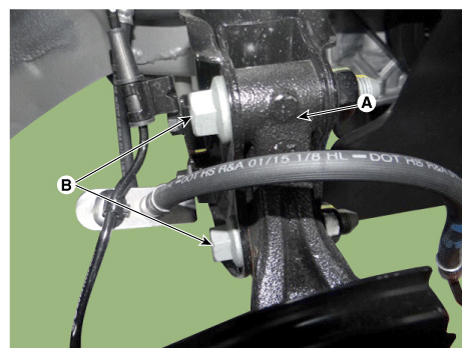

Loosen the strut mounting bolts (B) and then remove the hub and knuckle assembly from the strut assembly (A).
Tightening torque:

196.1 - 215.7 N.m (20.0 - 22.0 kgf.m, 144.7 - 159.1 lb.ft)

Fig 4: Locating Strut Mounting Bolts And Strut Assembly
Courtesy of KIA MOTORS AMERICA, INC.

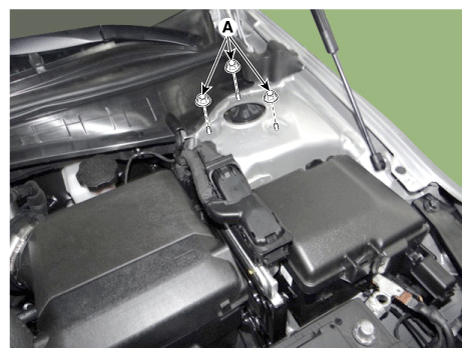

Remove the strut lock nuts (A).
Tightening torque:

53.9 - 73.5 N.m (5.5 - 7.5 kgf.m, 39.8 - 54.2 lb.ft)

Fig 5: Locating Strut Lock Nuts

Courtesy of KIA MOTORS AMERICA, INC.
