Repair Procedures: Remove

Tightening torque:

88.2 - 107.8 N.m (9.0 - 11.0 kgf.m, 65.0 - 79.5 lb.ft)

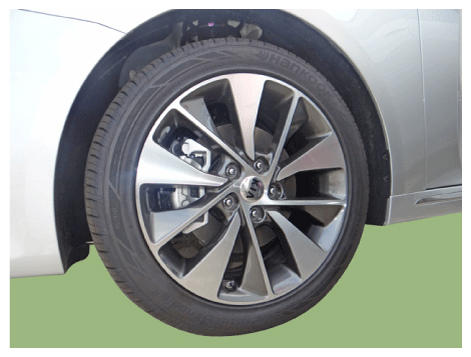

Fig 1: Wheel And Tire

Courtesy of KIA MOTORS AMERICA, INC.

Tightening torque:

98.0 - 117.6 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.7 lb.ft)

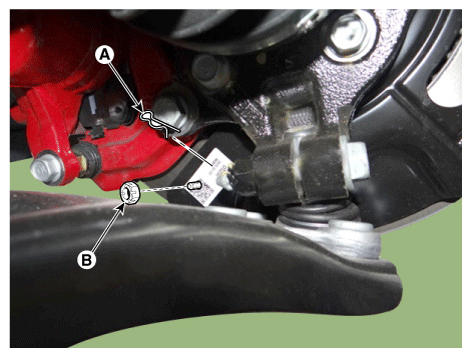

Fig 2: Locating Lower Arm Nut And Pin

Courtesy of KIA MOTORS AMERICA, INC.

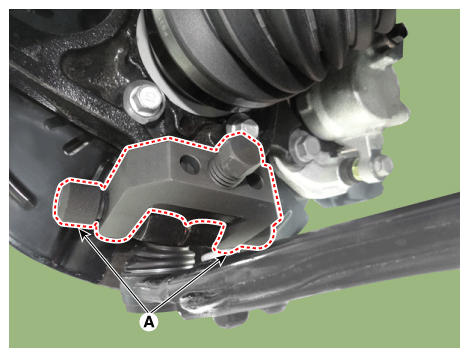

1. After removing bolts from the front knuckle, install and tighten the sub body bolt (A).
   Fig 3: Locating Sub Body Bolt

   Courtesy of KIA MOTORS AMERICA, INC.

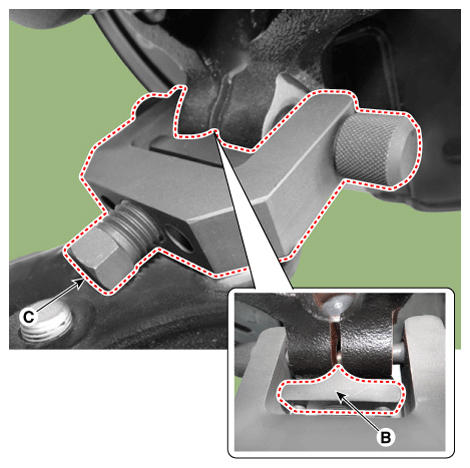

2. Insert the sub body (B) between the front knuckle and the sub body bolt.
3. Tighten the bolt (C) of the sub body bolt to broaden the gap of the front knuckle.
   Fig 4: Locating Sub Body And Bolt

   Courtesy of KIA MOTORS AMERICA, INC.

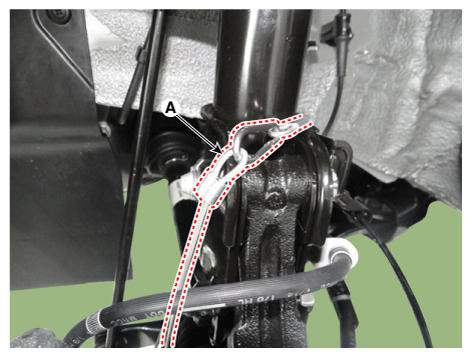

4. Install the safe wire (A).
   Fig 5: Locating Safe Wire

   Courtesy of KIA MOTORS AMERICA, INC.

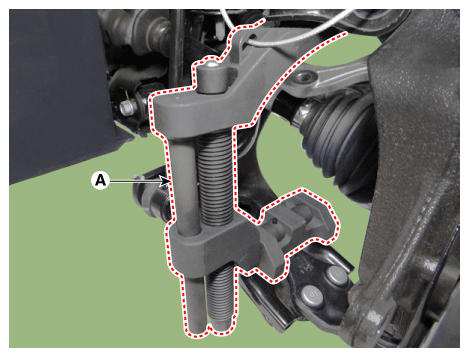

5. Install the main body (A) between the front strut and the lower arm.
   Fig 6: Locating Main Body

   Courtesy of KIA MOTORS AMERICA, INC.

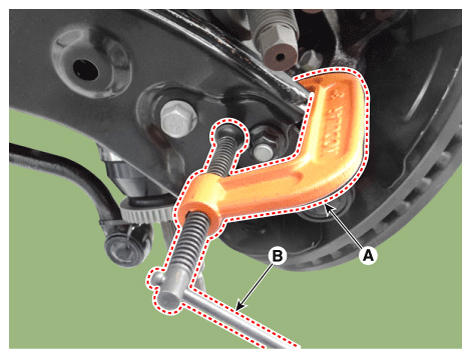

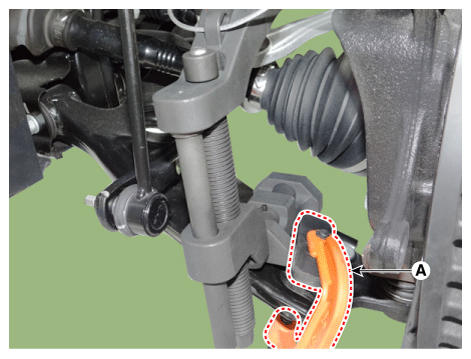

6. To avoid the main body coming off, install a fixing clamp (A) beside the main body.
   Fig 7: Locating Main Body Fixing Clamp

   Courtesy of KIA MOTORS AMERICA, INC.
7. After installing the body (A), rotate the handle (B) clockwise until the clamp is fixed on the lower arm.
   Fig 8: Rotating Handle Clockwise

   Courtesy of KIA MOTORS AMERICA, INC.

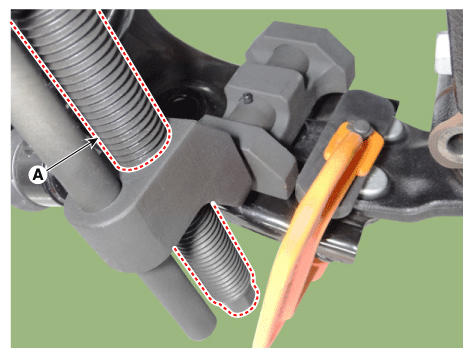

8. Tighten the main body bolt (A) slowly and remove the lower arm from the front knuckle.

Fig 9: Locating Main Body Bolt

Courtesy of KIA MOTORS AMERICA, INC.

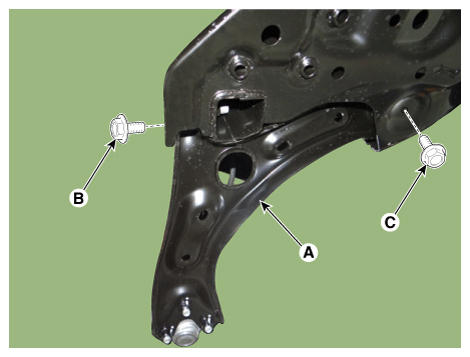

Tightening torque:

1. B: 117.7 - 137.3 N.m (12.0 - 14.0 kgf.m, 86.8 - 101.3 lb.ft)
2. C: 156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb.ft)

Fig 10: Locating Sub Frame Lower Arm And Bolts

Courtesy of KIA MOTORS AMERICA, INC.

(Refer to Tires/Wheels - "ALIGNMENT ")
