Repair Procedures: Disassembly

WARNING: This page is about a different variant/trim than selected.

Disconnect the ball joint after loosening the nut (A).
Tightening torque:

117.7 - 137.3 N.m (12.0 - 14.0 kgf.m, 86.6 - 101.3 lb.ft)

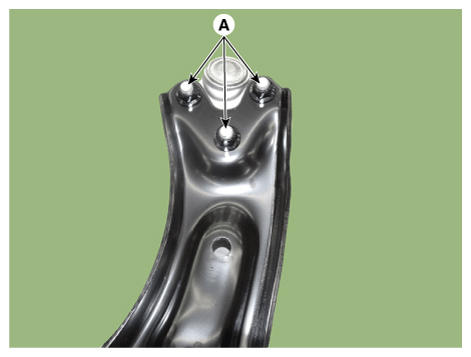

Fig 1: Locating Ball Joint Nut
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Using a plastic hammer, remove the ball joint.
- Do not to damage to the lower arm.

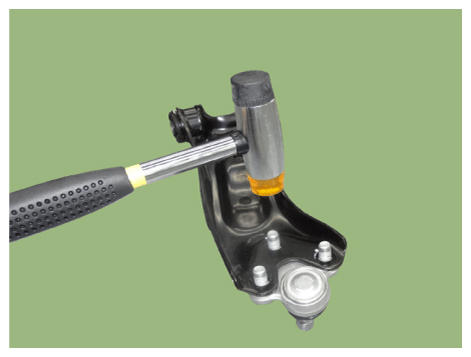

Fig 2: Removing Ball Joint Using Plastic Hammer
Courtesy of KIA MOTORS AMERICA, INC.
Install the new ball joint and then tighten the nut (A).
Tightening torque:

117.7 - 137.3 N.m (12.0 - 14.0 kgf.m, 86.6 - 101.3 lb.ft)

Fig 3: Locating Ball Joint Nut
Courtesy of KIA MOTORS AMERICA, INC.
