Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the bumper.
(Refer to Body - "FRONT BUMPER COVER ")

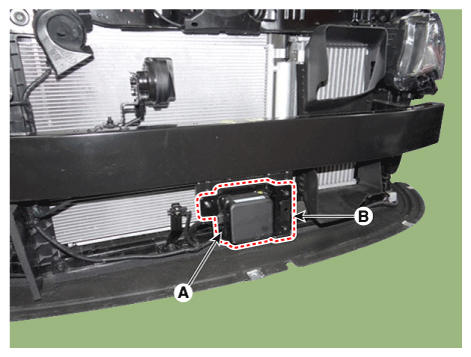

- Disconnect the ASCC radar connector (A).

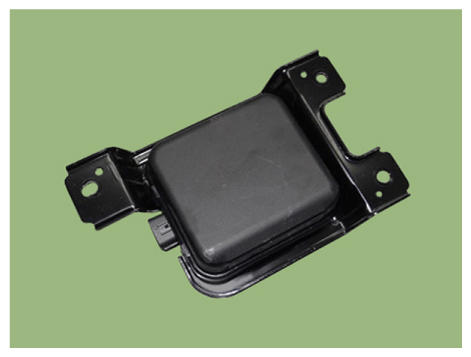

- Remove the ASCC radar (B) after loosening the mounting nut.
