Advanced Smart Cruise Control (ASCC) Radar Sensor Alignment

Advanced Smart Cruise Control (ASCC) unit detects a vehicle in front and then calculates the distance to the vehicle in front and the relative speed by using the built-in radar sensor.

In order for the radar sensor to operate correctly, it must be properly aligned parallel to the driving direction of the vehicle. For this reason, the radar sensor alignment procedure must be carried out whenever the sensor has been reinstalled or replaced with a new one.

If the sensor alignment procedure is not performed in the conditions mentioned above, the smart cruise control system may not operate correctly.

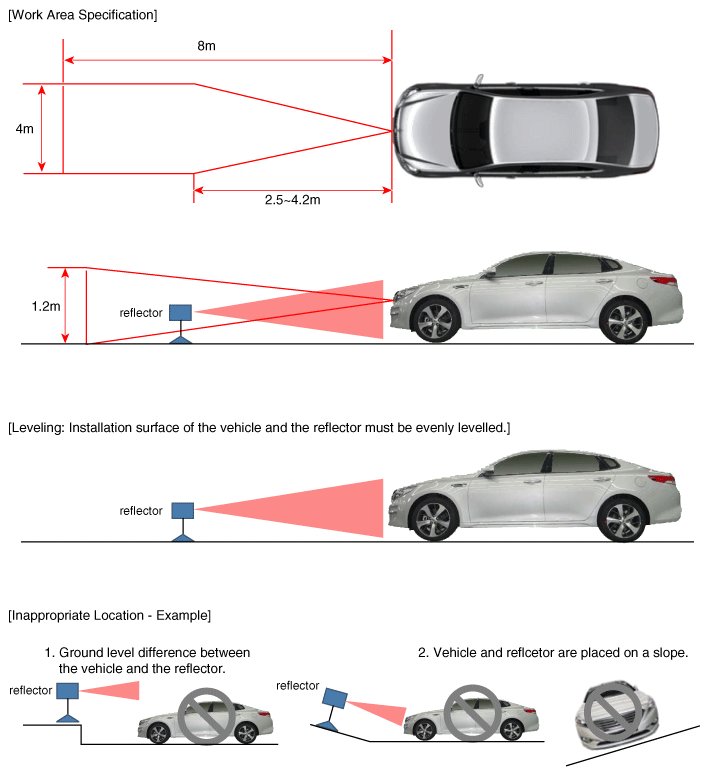

1. Park the vehicle on a level ground.
   NOTE:

   • Adjustment may not be accurate if the vehicle and reflector are placed on different ground levels or on a slope.
   • Perform in an area with minimum clearance of 8 m to the front, 4 m wide, and 1.2 m above the ground.
   • Remove heavy objects from inside of the vehicle (seating area and trunk).
   • Ensure that all tires are filled with specified air pressure.
   • Remove objects (metal plates, resins, etc.) that may cause electric signal interference from the area where sensor alignment is performed.
   • Be sure that the vehicle is not moved and free from vibration when performing sensor alignment (getting in/out or opening/closing doors).
   • Check that radiator grille and sensor cover are not dirty.
   • Check for correct wheel alignment.
   • Do not turn OFF the power when performing sensor alignment.
   • Power supplied to the radar sensor must be between 9V~16V.
   • Temperature in the area where sensor alignment is performed must be between -30~60°C.
   Fig 1: Checking Advanced Smart Cruise Control Radar Sensor Alignment

   Courtesy of KIA MOTORS AMERICA, INC.

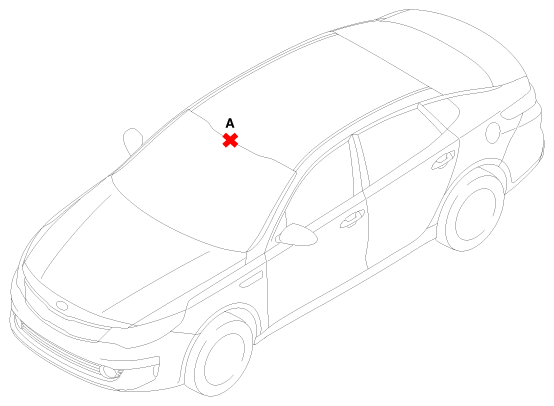

2. Mark the center point on top of wind glass (A).
   Fig 2: Marking Center Point On Top Of Wind Glass

   Courtesy of KIA MOTORS AMERICA, INC.

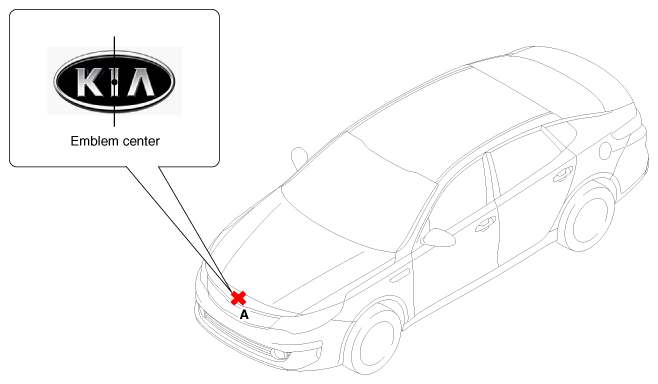

3. Mark the center point of emblem (A).
   Fig 3: Marking Center Point Of Emblem

   Courtesy of KIA MOTORS AMERICA, INC.

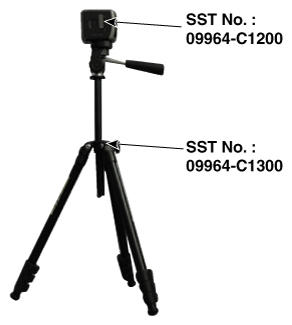

4. Mount the SCC Calibration Laser [SST No.: 09964-C1200] onto the tripod [SST No.: 09964-C1300].
   Fig 4: Mounting SCC Calibration Laser (SST No.: 09964-C1200) Onto Tripod (SST No.: 09964-C1300)

   Courtesy of KIA MOTORS AMERICA, INC.

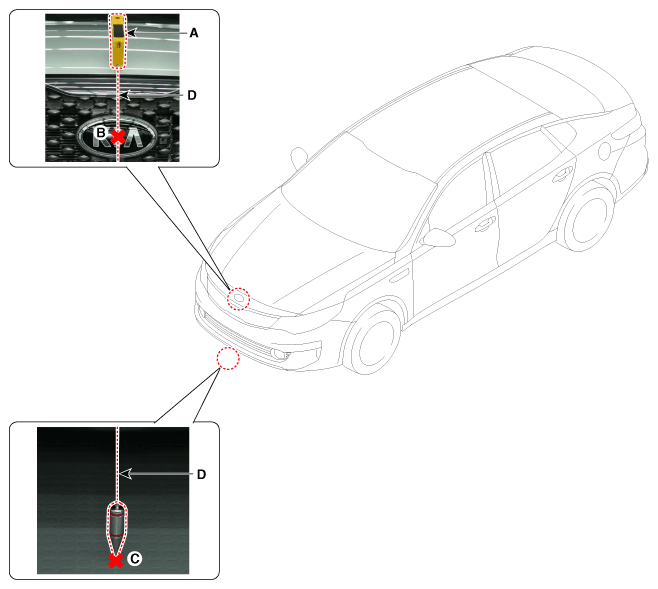

5. By using the SCC Calibration Reflector [SST No.: 09964-C1100] (A), adjust the wire (D) so that the center point of emblem (B) and the center point on the ground (C) are perpendicular to each other.
   Fig 5: Adjusting Wire Using SCC Calibration Reflector (SST No.: 09964-C1100)

   Courtesy of KIA MOTORS AMERICA, INC.

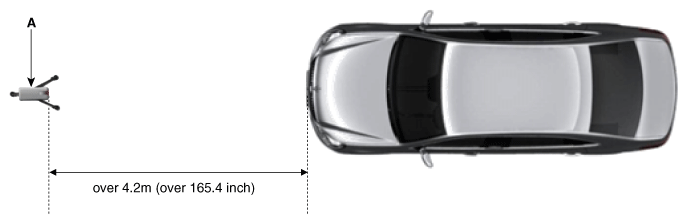

6. Install the vertical/horizontal laser [SST No.: 09964-C1200] (A) at least 4.2 m to the front of the vehicle.
   Fig 6: Checking Distance Between Vertical/Horizontal Laser (SST No.: 09964-C1200) To Front Of Vehicle

   Courtesy of KIA MOTORS AMERICA, INC.

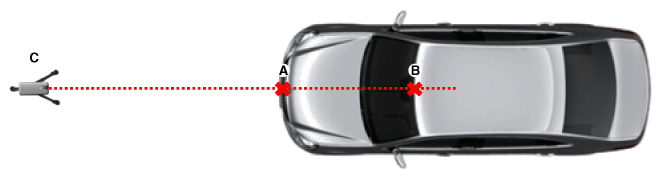

7. Match the vertical line of laser to (A) and (B) using the vertical/horizontal laser (C) [SST No.: 09964-C1200].
   Fig 7: Matching Vertical Line Of Laser Using Vertical/Horizontal Laser (SST No.: 09964-C1200)

   Courtesy of KIA MOTORS AMERICA, INC.

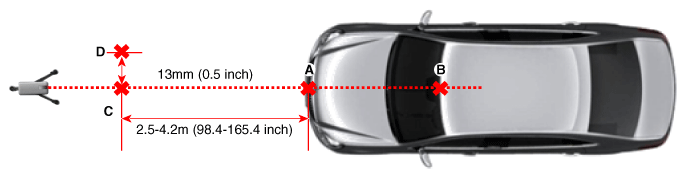

8. Mark (C) at 2.5 - 4.2 m (98.4 - 165.4 inch) from (A) in front of the vehicle.
9. Mark point (D) 13 mm (0.5 inch) to the left from point (C).
   Fig 8: Checking Vehicle Line Mark Points

   Courtesy of KIA MOTORS AMERICA, INC.

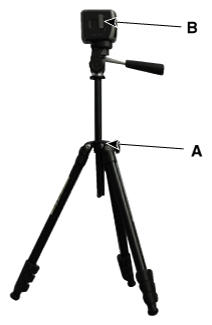

10. Remove the SCC Calibration Laser [SST No.: 09964-C1200] (B) from the tripod [SST No.: 09964-C1300] (A).
    Fig 9: Locating SCC Calibration Laser (SST No.: 09964-C1200) And Tripod (SST No.: 09964-C1300)

    Courtesy of KIA MOTORS AMERICA, INC.

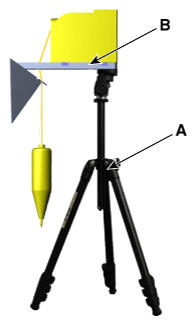

11. Mount the reflector [SST No.: 09964-C1100] (B) onto the tripod [SST No.: 09964-C1300] (A).
    Fig 10: Mounting Reflector (SST No.: 09964-C1100) Onto Tripod (SST No.: 09964-C1300)

    Courtesy of KIA MOTORS AMERICA, INC.

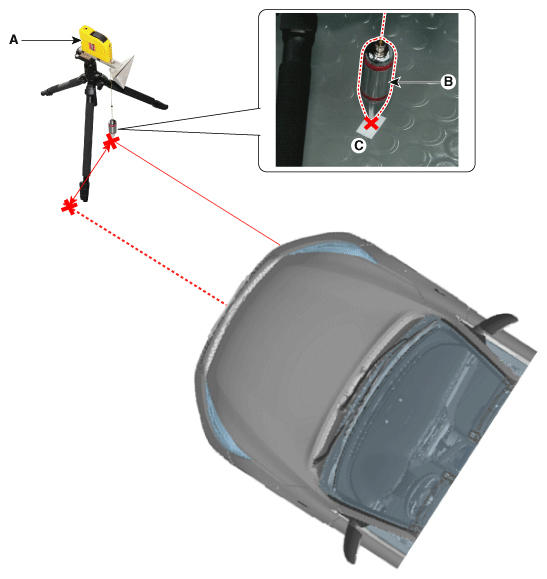

12. Align the vertical weight (B) of the SCC Calibration Reflector [SST No.: 09964-C1100] (A) with the point (C).
    Fig 11: Aligning Vertical Weight Of SCC Calibration Reflector (SST No.: 09964-C1100) With Point

    Courtesy of KIA MOTORS AMERICA, INC.

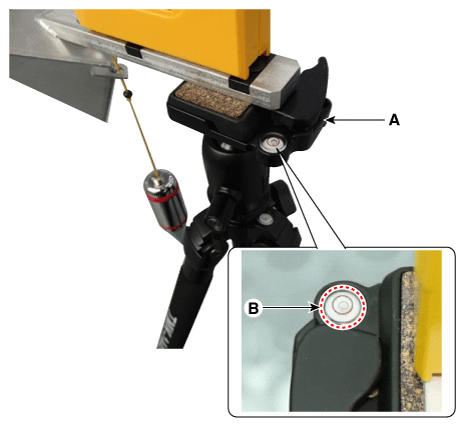

13. Using the bubble level (B) of the tripod [SST No.: 09964-C1300] (A), set the reflector horizontally.
    Fig 12: Setting Reflector Horizontally Using Bubble Level Of Tripod (SST No.: 09964-C1300)

    Courtesy of KIA MOTORS AMERICA, INC.

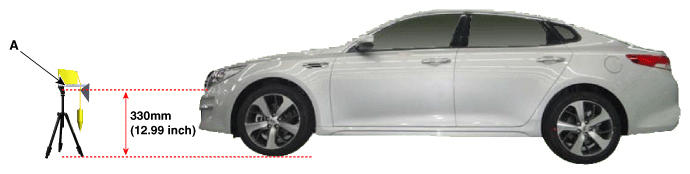

14. Set the height of the SCC calibration reflector [SST No.: 09964-C1100] (A) to 330 mm (12.99 inch).
    Fig 13: Setting Height Of SCC Calibration Reflector (SST No.: 09964-C1100)

    Courtesy of KIA MOTORS AMERICA, INC.
15. Visually check again the radar sensor and the surface of the front bumper for the following.
    NOTE:

    • Make sure that there is no debris, or reflecting object on the surface of the radar.
    • Make sure that there is no debris, or reflecting object on the radiator grille.
16. Connect the KDS/GDS to the DLC of the vehicle and start sensor alignment.
    NOTE: If the engine is running, the vibration may cause inaccurate sensor alignment, so perform sensor alignment in IG ON mode.
17. After correctly selecting the vehicle model, select "SCC Alignment" from the auxiliary functions in KDS/GDS Menu.

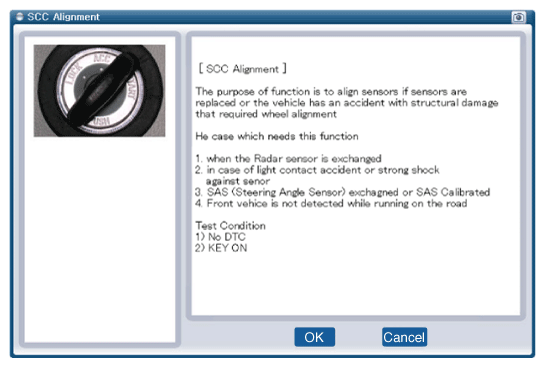

    Fig 14: Scantool Display - SCC Alignment

    Courtesy of KIA MOTORS AMERICA, INC.
18. Perform sensor alignment as indicated on the KDS/GDS monitor.

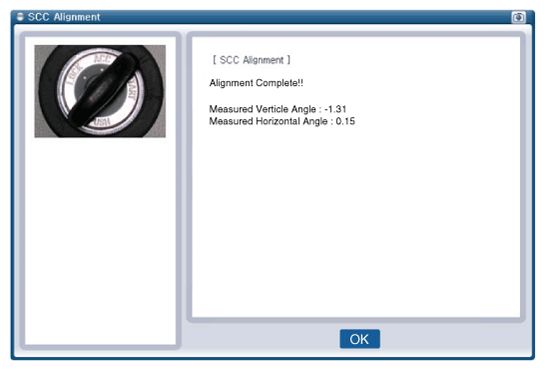

    Fig 15: Scantool Display - SCC Alignment Completed

    Courtesy of KIA MOTORS AMERICA, INC.
19. In case of sensor alignment failure, check the alignment conditions. Turn the ignition key OFF, then reperform the sensor alignment procedure.
