Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

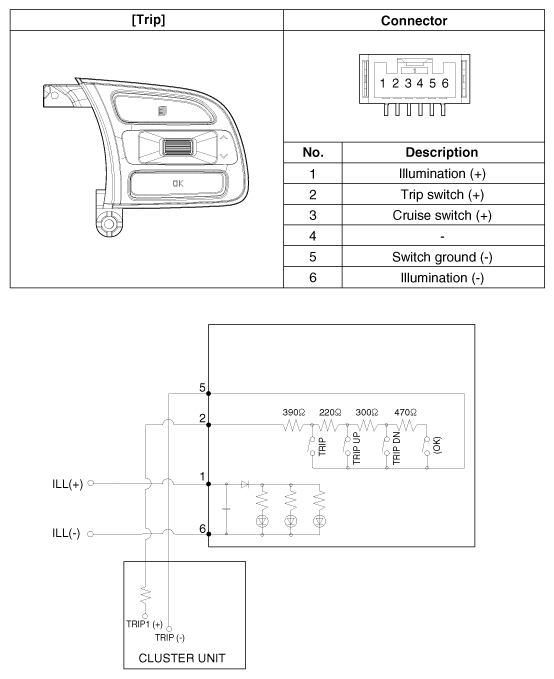

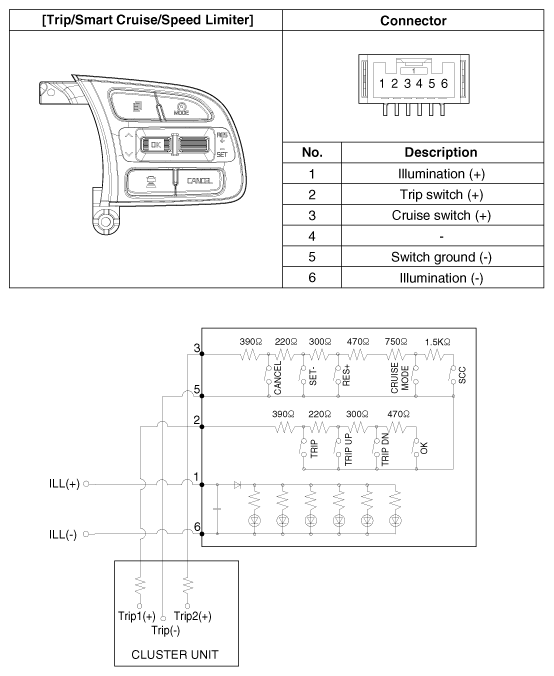

Fig 1: Advanced Smart Cruise Control Switch Circuit (1 Of 9)

Courtesy of KIA MOTORS AMERICA, INC.

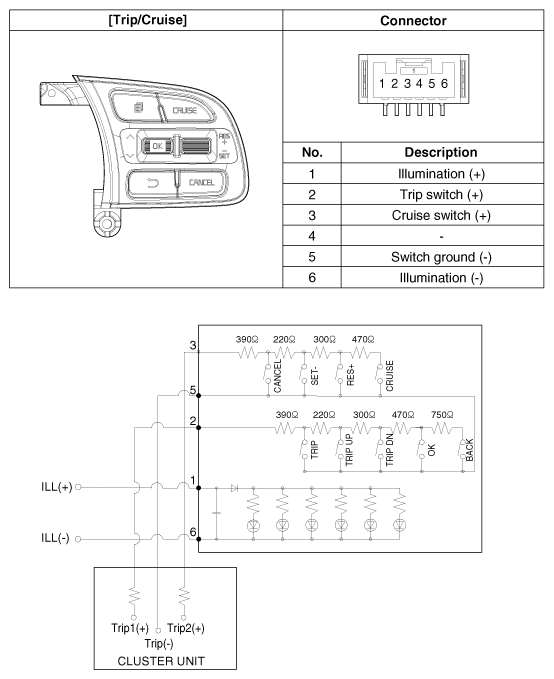

Fig 2: Advanced Smart Cruise Control Switch Circuit (2 Of 9)

Courtesy of KIA MOTORS AMERICA, INC.

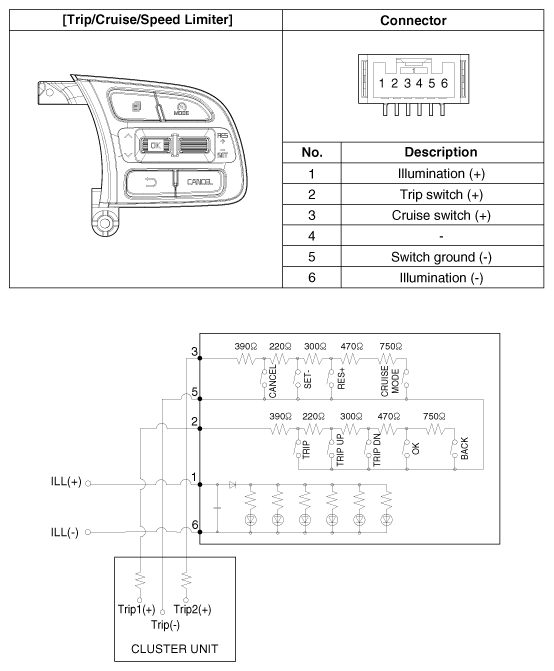

Fig 3: Advanced Smart Cruise Control Switch Circuit (3 Of 9)

Courtesy of KIA MOTORS AMERICA, INC.

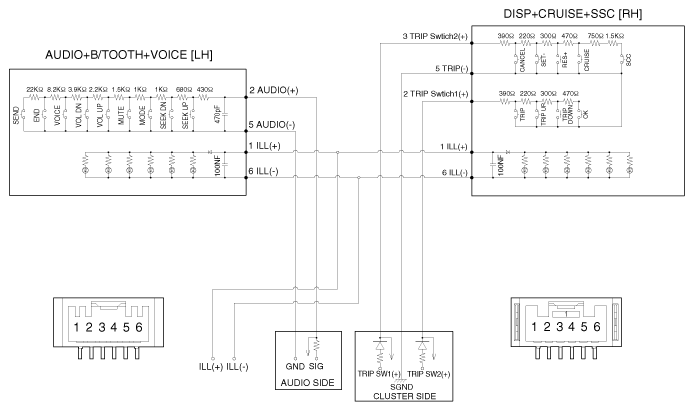

Fig 4: Advanced Smart Cruise Control Switch Circuit (4 Of 9)

Courtesy of KIA MOTORS AMERICA, INC.

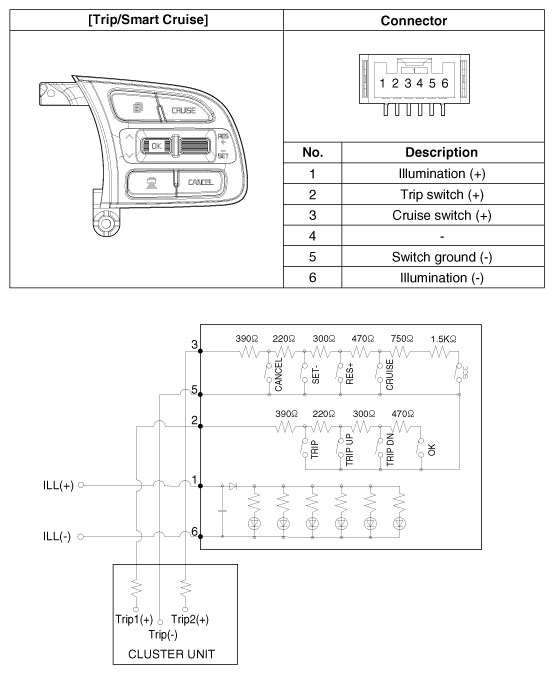

Fig 5: Advanced Smart Cruise Control Switch Circuit (5 Of 9)

Courtesy of KIA MOTORS AMERICA, INC.

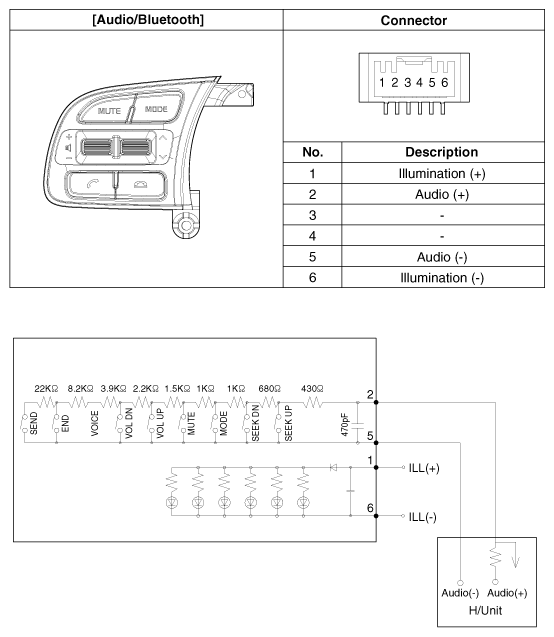

Fig 6: Advanced Smart Cruise Control Switch Circuit (6 Of 9)

Courtesy of KIA MOTORS AMERICA, INC.

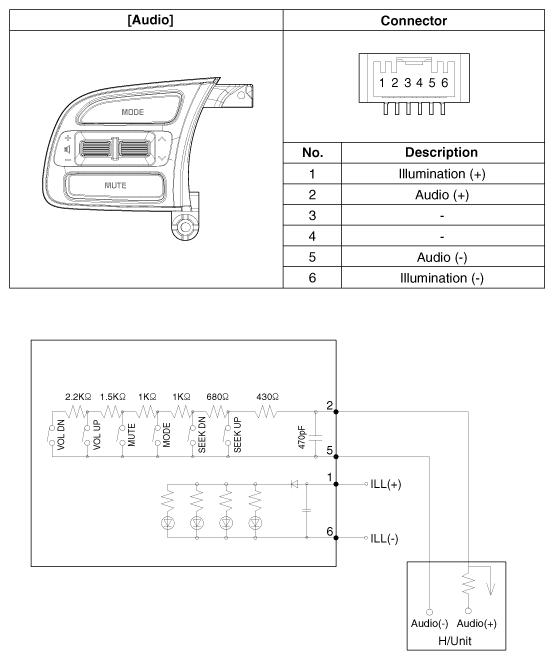

Fig 7: Advanced Smart Cruise Control Switch Circuit (7 Of 9)

Courtesy of KIA MOTORS AMERICA, INC.

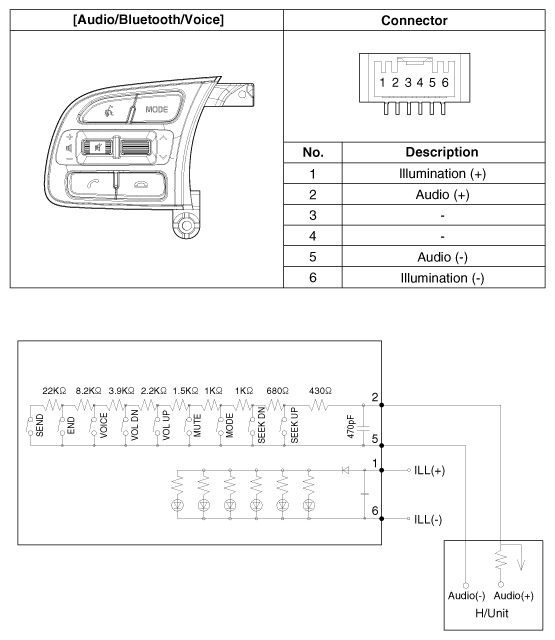

Fig 8: Advanced Smart Cruise Control Switch Circuit (8 Of 9)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 9: Advanced Smart Cruise Control Switch Circuit (9 Of 9)

Courtesy of KIA MOTORS AMERICA, INC.
