Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Disassembly the steering wheel assembly.
(Refer to Steering System - "STEERING WHEEL ")
Remove the paddle shift switch (A) after loosening the mounting screws.
[LH]

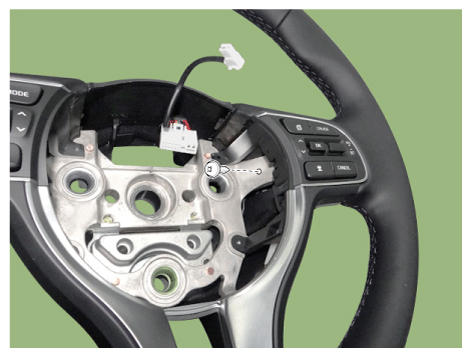

Fig 1: Steering Wheel Assembly Mounting Screws (LH)
Courtesy of KIA MOTORS AMERICA, INC.

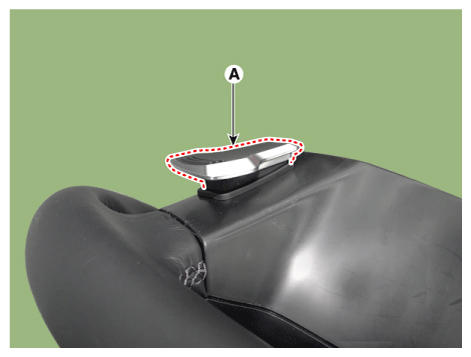

Fig 2: Locating Paddle Shift Switch (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

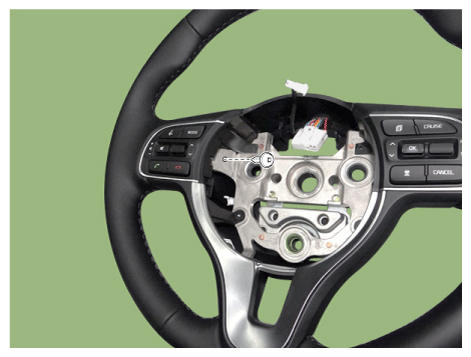

Fig 3: Steering Wheel Assembly Mounting Screws (RH)
Courtesy of KIA MOTORS AMERICA, INC.

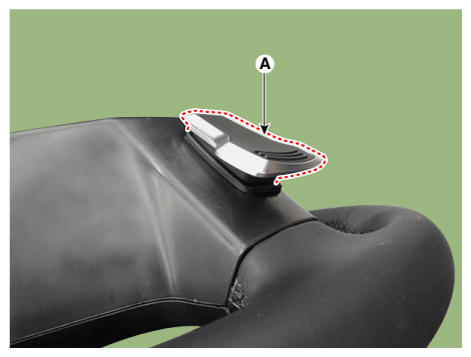

Fig 4: Locating Paddle Shift Switch (RH)
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the paddle shift switch connector (A).
[LH]

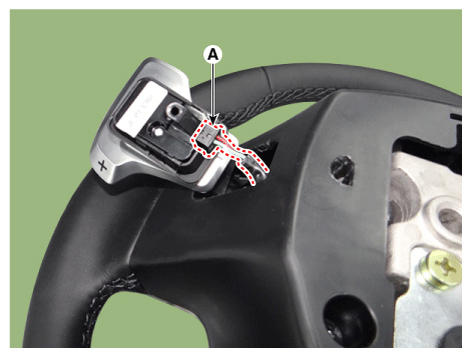

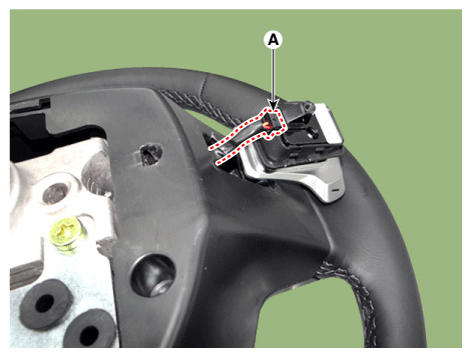

Fig 5: Locating Paddle Shift Switch Connector (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Fig 6: Locating Paddle Shift Switch Connector (RH)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the steering back cover (A).

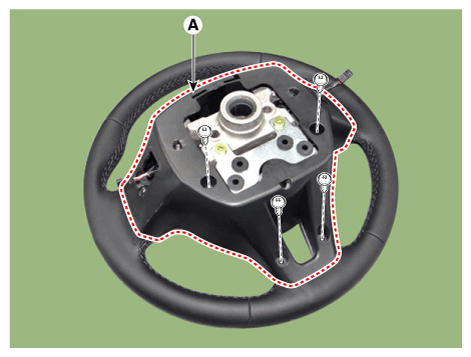

Fig 7: Locating Steering Back Cover
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the steering wheel remote connector (A).
[LH]

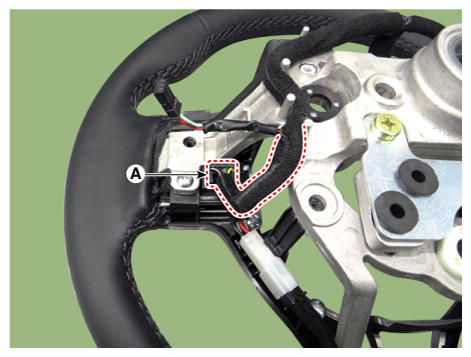

Fig 8: Locating Steering Wheel Remote Connector (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

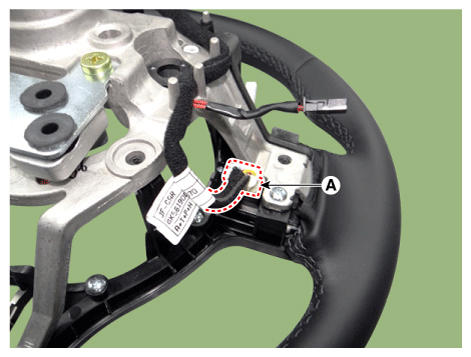

Fig 9: Locating Steering Wheel Remote Connector (RH)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the steering wheel remote control assembly (A) after loosening the mounting screws.

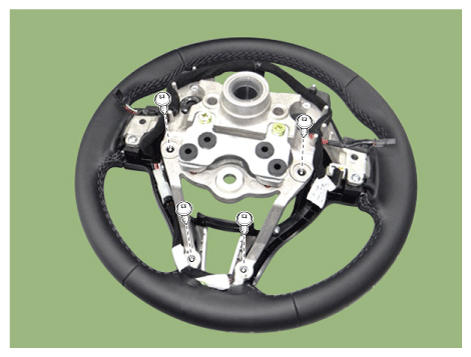

Fig 10: Steering Wheel Remote Control Assembly Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.

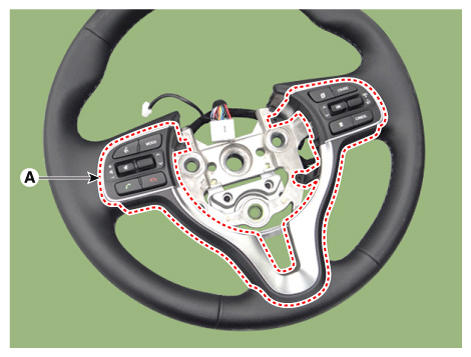

Fig 11: Locating Steering Wheel Remote Control Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ASCC switch (A) after loosening the mounting screws.

Fig 12: Locating ASCC Switch With Mounting Screws

Courtesy of KIA MOTORS AMERICA, INC.
