Terminal Function

WARNING: This page is about a different variant/trim than selected.

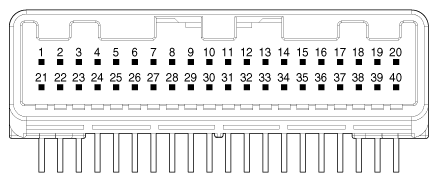

Fig 1: Advanced Smart Cruise Control ECU Connector Terminals
G12139961Courtesy of KIA MOTORS AMERICA, INC.
No. Description
1 L-CAN [Low]
2 L-CAN [High]
20 IGN1
21 Ground
22 C-CAN [High]
23 C-CAN [Low]
