Section 84 (Advanced Smart Cruise Control System (Except HEV))
>>
Advanced Smart Cruise Control (ASCC) ECU
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

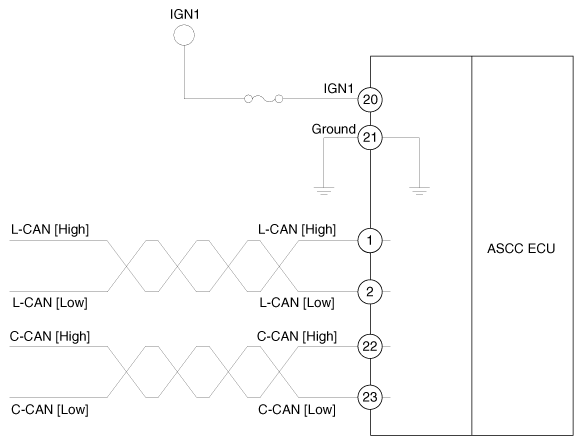

Fig 1: Advanced Smart Cruise Control ECU Circuit
Courtesy of KIA MOTORS AMERICA, INC.
