Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

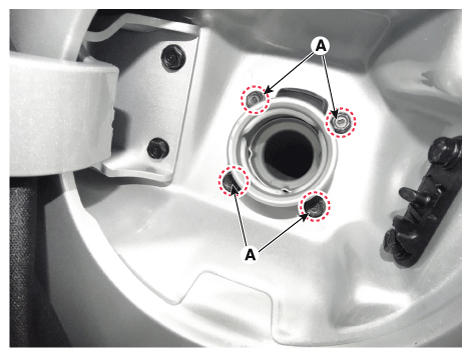

Open the fuel filler door and then remove the filler-neck installation screw (A).

Fig 1: Removing Filler-Neck Installation Screw
Courtesy of KIA MOTORS AMERICA, INC.
Lift the vehicle.
Remove the rear-LH wheel, tire, and the inner wheel house.
Remove the rear sub frame.
(Refer to Suspension System - "SUB FRAME ")

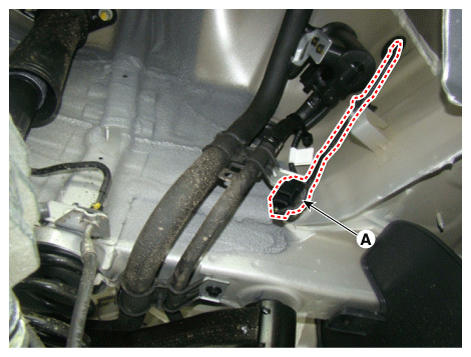

Disconnect the canister close valve connector (A).

Fig 2: Disconnecting Canister Close Valve Connector
Courtesy of KIA MOTORS AMERICA, INC.

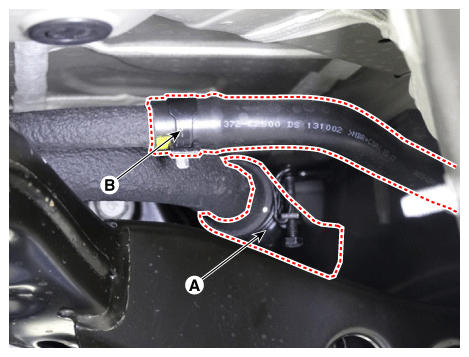

Disconnect the fuel filler hose (A).
Disconnect the ventilation hose (B) from the fuel tank air filter.

Fig 3: Disconnecting Ventilation Hose From Fuel Tank Air Filter
Courtesy of KIA MOTORS AMERICA, INC.

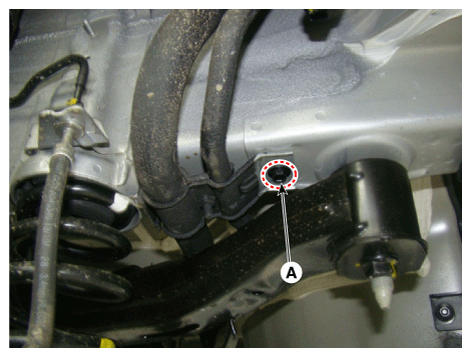

Remove the filler-neck assembly from the vehicle after removing the bracket installation bolt (A).

Fig 4: Removing Bracket Installation Bolt
Courtesy of KIA MOTORS AMERICA, INC.
