Cooling Fan Control Module

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery negative terminal.
Remove the air duct.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
Disconnect the cooling fan controller connector (PWM) (A) and fan motor extension connector (B).

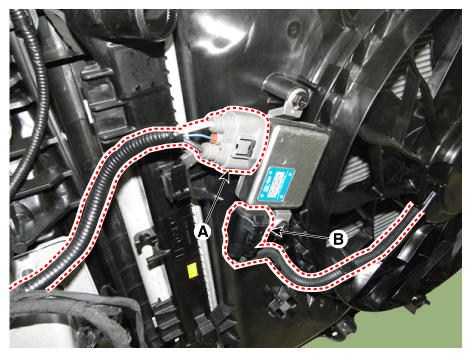

Fig 1: Disconnecting Cooling Fan Controller Connector (PWM) And Fan Motor Extension Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the cooling fan control module (A).
Tightening torque :

4.9 - 8.3 N.m (0.50 - 0.85 kgf.m, 3.6 - 6.1 lb.ft)

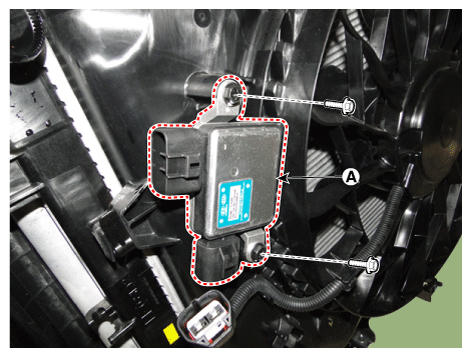

Fig 2: Removing Cooling Fan Control Module
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
