Components and Components Location: Component

WARNING: This page is about a different variant/trim than selected.

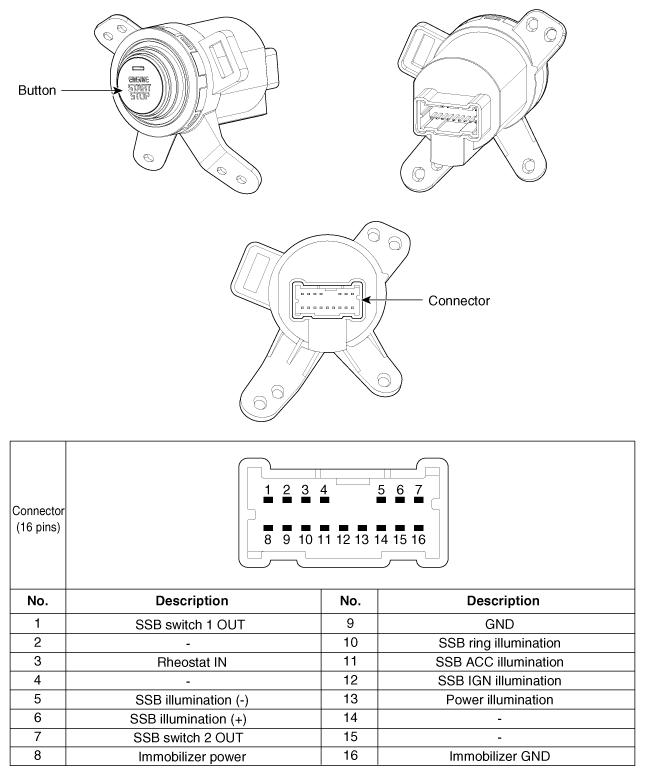

Fig 1: Start And Stop Button Components And Connector End View
G12143092Courtesy of KIA MOTORS AMERICA, INC.
