Section 63 (Button Engine Start System (Except HEV))
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

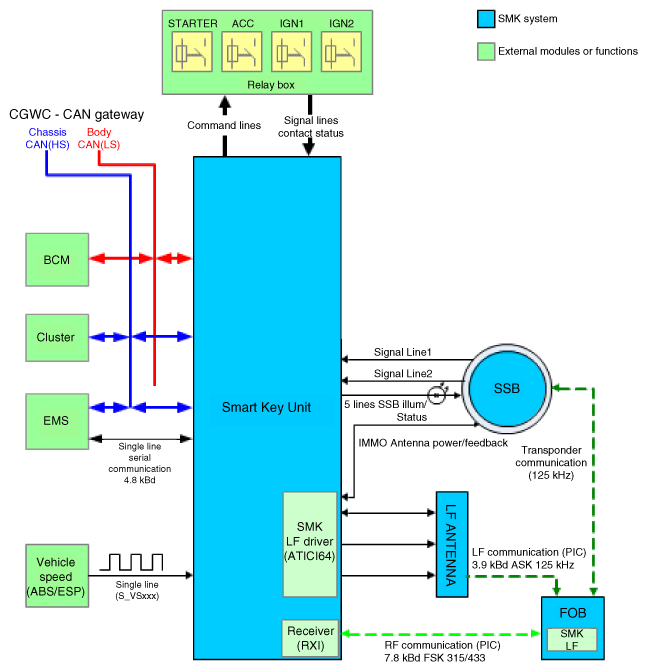

Fig 1: Button Engine Start System Circuit
Courtesy of KIA MOTORS AMERICA, INC.
