Limp Home Mode

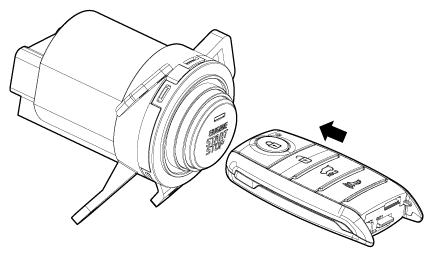

Fig 1: Limp Home Mode

Courtesy of KIA MOTORS AMERICA, INC.

• When the input for the brake is not made (AT specification)

  Moving to the "START" when SSB is pressed longer than 10 seconds in ACC state.

• In case of problem in communication between EMS and CAN (Namely, not available for deciding the EMS state)

  Moving to the state of "ENGINE RUN" from "START" based on the RPM input

• In case of short out of two SSB input line

The electric power cycling is available when SSB is pressed twice within 10 seconds (SSB LIMP HOME PRESS)

The buzzer goes off when the button is pressed the first time.

The electric power cycling is available and buzzer stops when the button is pressed twice within 10 seconds.
